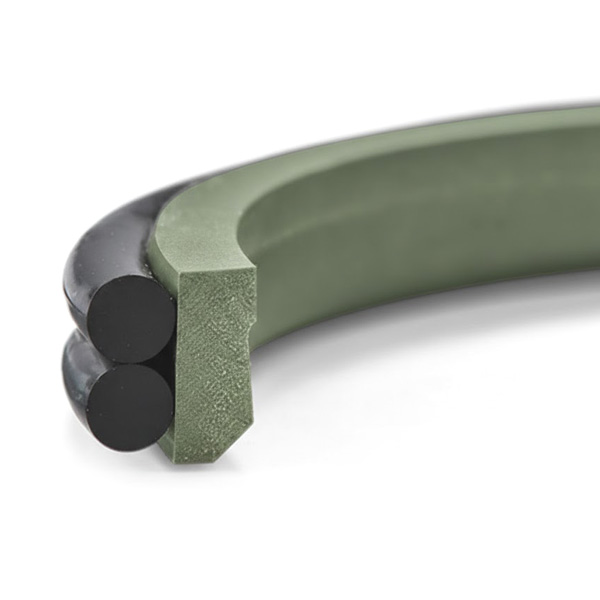

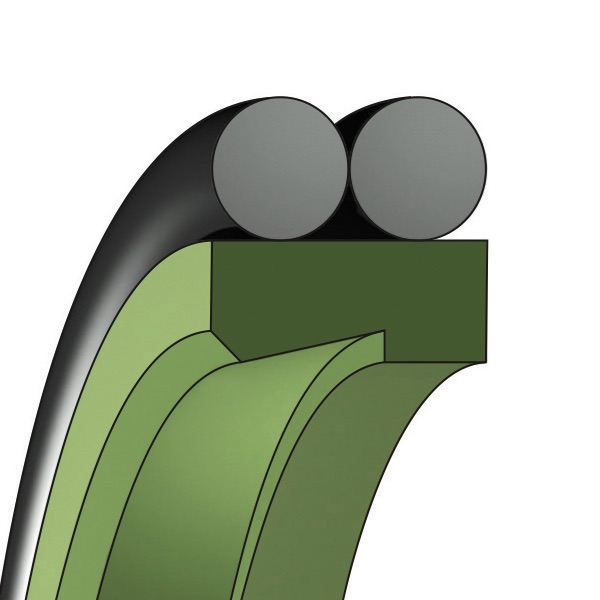

RT-ADouble-acting Wipers
Double-acting O-Ring energized scraper, it prevents the contamination from the outside, increasing effective system service life. Main characteristics are: low friction, no stick-slip and high wiper effect guaranteed over time. Double scraping action increases the efficiency of the sealing system. Especially suitable for heavy duty applications. Different materials available on request for special applications.
Seal capabilities
- Temperature: from -50 to 210 °C
- Max. speed: 15 m/s
Applications
This product is interchangeable with:
PT1 - K705 - NRT1
21F03 1900 A 24 21F03 1900 A24 21F03-1900-A24 K705-190 K705-190 PTFE/NBR WEF301900 WEF301900-M12N WEF301900-T46N
21F00 0250 A 24 21F00 0250 A24 21F00-0250-A24 K705-025 K705-025 PTFE/NBR WEF000250 WEF000250-M12N WEF000250-T46N
21F02 1050 A 24 21F02 1050 A24 21F02-1050-A24 K705-105 K705-105 PTFE/NBR WEF201050 WEF201050-M12N WEF201050-T46N
21F01 0630 A 24 21F01 0630 A24 21F01-0630-A24 K705-063 K705-063 PTFE/NBR WEF100630 WEF100630-M12N WEF100630-T46N
21F03 1500 A 24 21F03 1500 A24 21F03-1500-A24 K705-150 K705-150 PTFE/NBR WEF301500 WEF301500-M12N WEF301500-T46N
21F01 0400 A 24 21F01 0400 A24 21F01-0400-A24 K705-040 K705-040 PTFE/NBR WEF100400 WEF100400-M12N WEF100400-T46N
21F03 1650 A 24 21F03 1650 A24 21F03-1650-A24 WEF301650 WEF301650-M12N WEF301650-T46N
21F03 2200 A 24 21F03 2200 A24 21F03-2200-A24 K705-220 K705-220 PTFE/NBR WEF302200 WEF302200-M12N WEF302200-T46N
21F02 0750 A 24 21F02 0750 A24 21F02-0750-A24 K705-075 K705-075 PTFE/NBR WEF200750 WEF200750-M12N WEF200750-T46N
21F02 1300 A 24 21F02 1300 A24 21F02-1300-A24 K705-130 K705-130 PTFE/NBR WEF201300 WEF201300-M12N WEF201300-T46N
21F02 0900 A 24 21F02 0900 A24 21F02-0900-A24 K705-090 K705-090 PTFE/NBR WEF200900 WEF200900-M12N WEF200900-T46N
21F03 1550 A 24 21F03 1550 A24 21F03-1550-A24 K705-155 K705-155 PTFE/NBR WEF301550 WEF301550-M12N WEF301550-T46N
21F03 2100 A 24 21F03 2100 A24 21F03-2100-A24 K705-210 K705-210 PTFE/NBR WEF302100 WEF302100-M12N WEF302100-T46N
21F02 1000 A 24 21F02 1000 A24 21F02-1000-A24 K705-100 K705-100 PTFE/NBR WEF201000 WEF201000-M12N WEF201000-T46N
21F01 0550 A 24 21F01 0550 A24 21F01-0550-A24 K705-055 K705-055 PTFE/NBR WEF100550 WEF100550-M12N WEF100550-T46N
21F01 0520 A 24 21F01 0520 A24 21F01-0520-A24 WEF100520 WEF100520-M12N WEF100520-T46N
21F00 0270 A 24 21F00 0270 A24 21F00-0270-A24 WEF000270 WEF000270-M12N WEF000270-T46N
21F00 0240 A 24 21F00 0240 A24 21F00-0240-A24 WEF000240 WEF000240-M12N WEF000240-T46N
21F02 1350 A 24 21F02 1350 A24 21F02-1350-A24 K705-135 K705-135 PTFE/NBR WEF201350 WEF201350-M12N WEF201350-T46N
21F00 0350 A 24 21F00 0350 A24 21F00-0350-A24 K705-035 K705-035 PTFE/NBR WEF000350 WEF000350-M12N WEF000350-T46N
21F02 0850 A 24 21F02 0850 A24 21F02-0850-A24 K705-085 K705-085 PTFE/NBR WEF200850 WEF200850-M12N WEF200850-T46N
21F00 0320 A 24 21F00 0320 A24 21F00-0320-A24 K705-032 K705-032 PTFE/NBR WEF000320 WEF000320-M12N WEF000320-T46N
21F03 1600 A 24 21F03 1600 A24 21F03-1600-A24 K705-160 K705-160 PTFE/NBR WEF301600 WEF301600-M12N WEF301600-T46N
21F00 0220 A 24 21F00 0220 A24 21F00-0220-A24 WEF000220 WEF000220-M12N WEF000220-T46N
21F03 1700 A 24 21F03 1700 A24 21F03-1700-A24 K705-170 K705-170 PTFE/NBR WEF301700 WEF301700-M12N WEF301700-T46N
21F00 0360 A 24 21F00 0360 A24 21F00-0360-A24 K705-036 K705-036 PTFE/NBR WEF000360 WEF000360-M12N WEF000360-T46N
21F02 0800 A 24 21F02 0800 A24 21F02-0800-A24 K705-080 K705-080 PTFE/NBR WEF200800 WEF200800-M12N WEF200800-T46N
21F00 0300 A 24 21F00 0300 A24 21F00-0300-A24 K705-030 K705-030 PTFE/NBR WEF000300 WEF000300-M12N WEF000300-T46N
21F00 0280 A 24 21F00 0280 A24 21F00-0280-A24 K705-028 K705-028 PTFE/NBR WEF000280 WEF000280-M12N WEF000280-T46N
21F01 0650 A 24 21F01 0650 A24 21F01-0650-A24 K705-065 K705-065 PTFE/NBR WEF100650 WEF100650-M12N WEF100650-T46N
21F03 1450 A 24 21F03 1450 A24 21F03-1450-A24 WEF301450 WEF301450-M12N WEF301450-T46N
21F03 2000 A 24 21F03 2000 A24 21F03-2000-A24 K705-200 K705-200 PTFE/NBR WEF302000 WEF302000-M12N WEF302000-T46N
21F02 1100 A 24 21F02 1100 A24 21F02-1100-A24 K705-110 K705-110 PTFE/NBR WEF201100 WEF201100-M12N WEF201100-T46N
21F01 0600 A 24 21F01 0600 A24 21F01-0600-A24 K705-060 K705-060 PTFE/NBR WEF100600 WEF100600-M12N WEF100600-T46N
21F03 1530 A 24 21F03 1530 A24 21F03-1530-A24 WEF301530 WEF301530-M12N WEF301530-T46N
21F02 0950 A 24 21F02 0950 A24 21F02-0950-A24 WEF200950 WEF200950-M12N WEF200950-T46N
21F03 1400 A 24 21F03 1400 A24 21F03-1400-A24 K705-140 K705-140 PTFE/NBR WEF301400 WEF301400-M12N WEF301400-T46N
21F02 1250 A 24 21F02 1250 A24 21F02-1250-A24 K705-125 K705-125 PTFE/NBR WEF201250 WEF201250-M12N WEF201250-T46N
21F02 1200 A 24 21F02 1200 A24 21F02-1200-A24 K705-120 K705-120 PTFE/NBR WEF201200 WEF201200-M12N WEF201200-T46N
21F03 1800 A 24 21F03 1800 A24 21F03-1800-A24 K705-180 K705-180 PTFE/NBR WEF301800 WEF301800-M12N WEF301800-T46N
21F02 1150 A 24 21F02 1150 A24 21F02-1150-A24 K705-115 K705-115 PTFE/NBR WEF201150 WEF201150-M12N WEF201150-T46N
21F00 0200 A 24 21F00 0200 A24 21F00-0200-A24 WEF000200 WEF000200-M12N WEF000200-T46N
21F01 0420 A 24 21F01 0420 A24 21F01-0420-A24 WEF100420 WEF100420-M12N WEF100420-T46N
21F01 0450 A 24 21F01 0450 A24 21F01-0450-A24 K705-045 K705-045 PTFE/NBR WEF100450 WEF100450-M12N WEF100450-T46N
21F03 1750 A 24 21F03 1750 A24 21F03-1750-A24 K705-175 K705-175 PTFE/NBR WEF301750 WEF301750-M12N WEF301750-T46N
21F01 0500 A 24 21F01 0500 A24 21F01-0500-A24 K705-050 K705-050 PTFE/NBR WEF100500 WEF100500-M12N WEF100500-T46N
21F02 0700 A 24 21F02 0700 A24 21F02-0700-A24 K705-070 K705-070 PTFE/NBR WEF200700 WEF200700-M12N WEF200700-T46N
21F01 0480 A 24 21F01 0480 A24 21F01-0480-A24 WEF100480 WEF100480-M12N WEF100480-T46N
21F03 2280 A 24 21F03 2280 A24 21F03-2280-A24 WEF302280 WEF302280-M12N WEF302280-T46N
21F01 0560 A 24 21F01 0560 A24 21F01-0560-A24 K705-056 K705-056 PTFE/NBR WEF100560 WEF100560-M12N WEF100560-T46N
Search by code
| Description | Ø d | Ø D | Ø I | L | ||
|---|---|---|---|---|---|---|
| RT-30-A-20 B40 BN | 20,00 | 27,60 | 21,00 | 4,20 | PTFE+Bz/NBR | |
| RT-30-A-22 B40 BN | 22,00 | 29,60 | 23,00 | 4,20 | PTFE+Bz/NBR | |
| RT-30-A-24 B40 BN | 24,00 | 31,60 | 25,00 | 4,20 | PTFE+Bz/NBR | |
| RT-30-A-25 B40 BN | 25,00 | 32,60 | 26,00 | 4,20 | PTFE+Bz/NBR | |
| RT-30-A-27 B40 BN | 27,00 | 34,60 | 28,00 | 4,20 | PTFE+Bz/NBR | |
| RT-30-A-28 B40 BN | 28,00 | 35,60 | 29,00 | 4,20 | PTFE+Bz/NBR | |
| RT-30-A-30 B40 BN | 30,00 | 37,60 | 31,00 | 4,20 | PTFE+Bz/NBR | |
| RT-30-A-32 B40 BN | 32,00 | 39,60 | 33,00 | 4,20 | PTFE+Bz/NBR | |
| RT-30-A-35 B40 BN | 35,00 | 42,60 | 36,00 | 4,20 | PTFE+Bz/NBR | |
| RT-30-A-36 B40 BN | 36,00 | 43,60 | 37,00 | 4,20 | PTFE+Bz/NBR | |
| RT-31-A-40 B40 BN | 40,00 | 48,80 | 41,50 | 6,30 | PTFE+Bz/NBR | |
| RT-31-A-42 B40 BN | 42,00 | 50,80 | 43,50 | 6,30 | PTFE+Bz/NBR | |
| RT-31-A-45 B40 BN | 45,00 | 53,80 | 46,50 | 6,30 | PTFE+Bz/NBR | |
| RT-31-A-48 B40 BN | 48,00 | 56,80 | 49,50 | 6,30 | PTFE+Bz/NBR | |
| RT-31-A-50 B40 BN | 50,00 | 58,80 | 51,50 | 6,30 | PTFE+Bz/NBR | |
| RT-31-A-52 B40 BN | 52,00 | 60,80 | 53,50 | 6,30 | PTFE+Bz/NBR | |
| RT-31-A-55 B40 BN | 55,00 | 63,80 | 56,50 | 6,30 | PTFE+Bz/NBR | |
| RT-31-A-56 B40 BN | 56,00 | 64,80 | 57,50 | 6,30 | PTFE+Bz/NBR | |
| RT-31-A-60 B40 BN | 60,00 | 68,80 | 61,50 | 6,30 | PTFE+Bz/NBR | |
| RT-31-A-63 B40 BN | 63,00 | 71,80 | 64,50 | 6,30 | PTFE+Bz/NBR | |
| RT-31-A-65 B40 BN | 65,00 | 73,80 | 66,50 | 6,30 | PTFE+Bz/NBR | |
| RT-32-A-70 B40 BN | 70,00 | 82,20 | 72,00 | 8,10 | PTFE+Bz/NBR | |
| RT-32-A-75 B40 BN | 75,00 | 87,20 | 77,00 | 8,10 | PTFE+Bz/NBR | |
| RT-32-A-80 B40 BN | 80,00 | 92,20 | 82,00 | 8,10 | PTFE+Bz/NBR | |
| RT-32-A-85 B40 BN | 85,00 | 97,20 | 87,00 | 8,10 | PTFE+Bz/NBR | |
| RT-32-A-90 B40 BN | 90,00 | 102,20 | 92,00 | 8,10 | PTFE+Bz/NBR | |
| RT-32-A-95 B40 BN | 95,00 | 107,20 | 97,00 | 8,10 | PTFE+Bz/NBR | |
| RT-32-A-100 B40 BN | 100,00 | 112,20 | 102,00 | 8,10 | PTFE+Bz/NBR | |
| RT-32-A-105 B40 BN | 105,00 | 117,20 | 107,00 | 8,10 | PTFE+Bz/NBR | |
| RT-32-A-110 B40 BN | 110,00 | 122,20 | 112,00 | 8,10 | PTFE+Bz/NBR | |
| RT-32-A-115 B40 BN | 115,00 | 127,20 | 117,00 | 8,10 | PTFE+Bz/NBR | |
| RT-32-A-120 B40 BN | 120,00 | 132,20 | 122,00 | 8,10 | PTFE+Bz/NBR | |
| RT-32-A-125 B40 BN | 125,00 | 137,20 | 127,00 | 8,10 | PTFE+Bz/NBR | |
| RT-32-A-130 B40 BN | 130,00 | 142,20 | 132,00 | 8,10 | PTFE+Bz/NBR | |
| RT-32-A-135 B40 BN | 135,00 | 147,20 | 137,00 | 8,10 | PTFE+Bz/NBR | |
| RT-33-A-140 B40 BN | 140,00 | 156,00 | 142,00 | 11,50 | PTFE+Bz/NBR | |
| RT-33-A-145 B40 BN | 145,00 | 161,00 | 147,00 | 11,50 | PTFE+Bz/NBR | |
| RT-33-A-150 B40 BN | 150,00 | 166,00 | 152,00 | 11,50 | PTFE+Bz/NBR | |
| RT-33-A-153 B40 BN | 153,00 | 169,00 | 155,00 | 11,50 | PTFE+Bz/NBR | |
| RT-33-A-155 B40 BN | 155,00 | 171,00 | 157,00 | 11,50 | PTFE+Bz/NBR | |
| RT-33-A-160 B40 BN | 160,00 | 176,00 | 162,00 | 11,50 | PTFE+Bz/NBR | |
| RT-33-A-165 B40 BN | 165,00 | 181,00 | 167,00 | 11,50 | PTFE+Bz/NBR | |
| RT-33-A-170 B40 BN | 170,00 | 186,00 | 172,00 | 11,50 | PTFE+Bz/NBR | |
| RT-33-A-175 B40 BN | 175,00 | 191,00 | 177,00 | 11,50 | PTFE+Bz/NBR | |
| RT-33-A-180 B40 BN | 180,00 | 196,00 | 182,00 | 11,50 | PTFE+Bz/NBR | |
| RT-33-A-190 B40 BN | 190,00 | 206,00 | 192,00 | 11,50 | PTFE+Bz/NBR | |
| RT-33-A-200 B40 BN | 200,00 | 216,00 | 202,00 | 11,50 | PTFE+Bz/NBR | |
| RT-33-A-210 B40 BN | 210,00 | 226,00 | 212,00 | 11,50 | PTFE+Bz/NBR | |
| RT-33-A-220 B40 BN | 220,00 | 236,00 | 222,00 | 11,50 | PTFE+Bz/NBR | |
| RT-33-A-228 B40 BN | 228,00 | 244,00 | 230,00 | 11,50 | PTFE+Bz/NBR |
