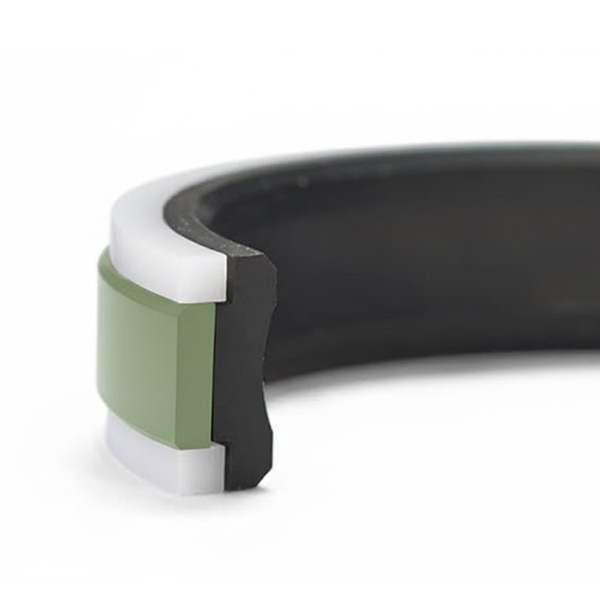

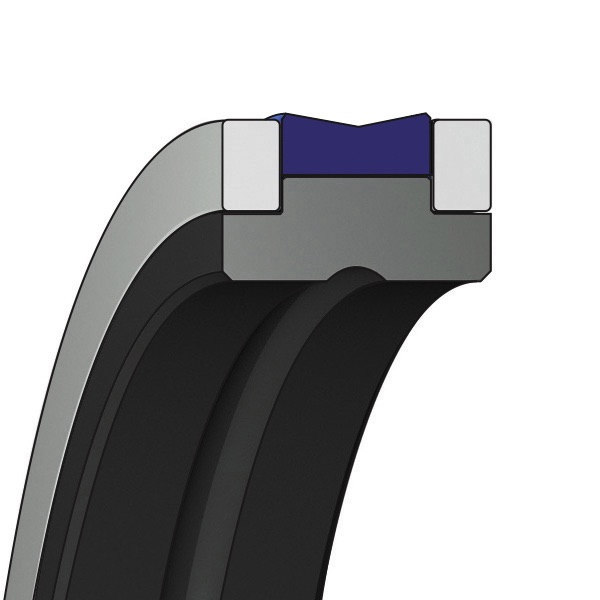

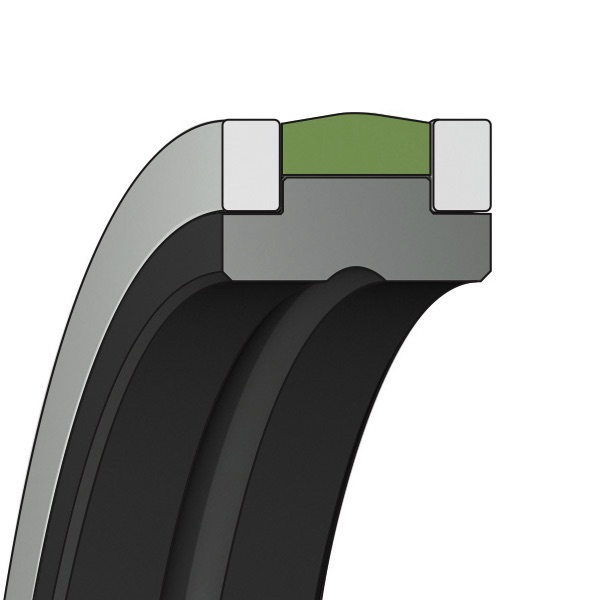

DHDGuarnizione a doppio effetto con antiestrusori integrati
Guarnizione di tenuta per pistone a doppio effetto con anelli antiestrusione integrati. Studiata per garantire un'ottima resistenza in impieghi gravosi minimizzando gli spazi di alloggiamento, grazie agli anelli antiestrusione integrati permette ampi giochi diametrali. Particolarmente adatta per applicazioni di idraulica pesante. Normalmente realizzata in compound di PTFE con energizzante in gomma nitrilica e anelli antiestrusione in resina poliacetalica, può essere realizzata in diversi abbinamenti di materiali a seconda delle esigenze dell'applicazione.
Caratteristiche
- Temperatura: da -30 a 110 °C
- Pressione massima: 600 bar
- Velocità massima: 1,5 m/s
Utilizzo
Questo prodotto è intercambiabile con:
PDH - PKP - L27 - 735 - KHD - K19 - PHD - MCGT - PDH-P - PDP - PHP - SPGW
02F02 1000 A 24 03 02F02-1000-A-24-03 02F02-1000-A2403 02F021000A2403 K19 100-085 K19 100-085 PTFE/NBR/POM KHD 100 85 12,5 KHD 100 85 12.5 PDH 119 PHD 10085 PKP001000 PKP001000-PTN04
02F01 0650 A 24 03 02F01-0650-A-24-03 02F01-0650-A2403 02F010650A2403 K19 065-050 K19 065-050 PTFE/NBR/POM KHD 65 50 11 PDH 109 PHD 6550 PKP000650 PKP000650-PTN04
PDP 117
02F02 1050 A 24 03 02F02-1050-A-24-03 02F02-1050-A2403 02F021050A2403 K19 105-090 K19 105-090 PTFE/NBR/POM KHD 105 90 12,5 KHD 105 90 12.5 PDH 119/1 PHD 10590 PKP001050 PKP001050-PTN04
PDP 113 PHD 8065 PHD 8065P-Z20 PKP0P0800 PKP0P0800-Z2053
PDP 108
02F01 0900 A 24 03 02F01-0900-A-24-03 02F01-0900-A2403 02F010900A2403 K19 090-075 K19 090-075 PTFE/NBR/POM KHD 90 75 11 PDH 116 PHD 9075 PKP000900 PKP000900-PTN04
PDP 101
PDP 111
K19 105-090/2 K19 105-090/2 PTFE/NBR/POM KHD 105 90 14
K19 105-090/1 K19 105-090/1 PTFE/NBR/POM KHD 105 90 13,5 KHD 105 90 13.5
PDP 104 PHD 5541 PHD 5541P-Z20 PKP0P0550 PKP0P0550-Z2053
PDP 115 PHD 8570 PHD 8570P-Z20 PKP0P0850 PKP0P0850-Z2053
PDP 102 PHD 5036 PHD 5036P-Z20 PKP0P0500 PKP0P0500-Z2053
PDP 122 PHD 120105 PHD 120105P-Z20 PKP0P1200 PKP0P1200-Z2053
K19 105-088 K19 105-088 PTFE/NBR/POM KHD 105 88 14
02F01 0750 A 24 03 02F01-0750-A-24-03 02F01-0750-A2403 02F010750A2403 K19 075-060 K19 075-060 PTFE/NBR/POM KHD 75 60 11 PDH 112 PHD 7560 PKP000750 PKP000750-PTN04
KHD 50 40 8 PDH 103
PDP 118
PDP 116 PHD 9075 PHD 9075P-Z20 PKP0P0900 PKP0P0900-Z2053
PDP 105 PHD 6046 PHD 6046P-Z20 PKP0P0600 PKP0P0600-Z2053
K19 060-050 K19 060-050 PTFE/NBR/POM KHD 60 50 8 PDH 106
02F02 1100 A 24 03 02F02-1100-A-24-03 02F02-1100-A2403 02F021100A2403 K19 110-095 K19 110-095 PTFE/NBR/POM KHD 110 95 12,5 KHD 110 95 12.5 PDH 120 PHD 11095 PKP001100 PKP001100-PTN04
PDP 119/1 PHD 10590 PHD 10590P-Z20 PKP0P1050 PKP0P1050-Z2053
KHD 63 53 8 PDH 108
PDP 109 PHD 6550 PHD 6550P-Z20 PKP0P0650 PKP0P0650-Z2053
KHD 70 60 8 PDH 111
02F01 0630 A 24 03 02F01-0630-A-24-03 02F01-0630-A2403 02F010630A2403 K19 063-048 K19 063-048 PTFE/NBR/POM KHD 63 48 11 PDH 107 PHD 6348 PKP000630 PKP000630-PTN04
PDP 121 PHD 115100 PHD 115100P-Z20 PKP0P1150 PKP0P1150-Z2053
KHD 40 30 8 PDH 101
02F01 0850 A 24 03 02F01-0850-A-24-03 02F01-0850-A2403 02F010850A2403 K19 085-070 K19 085-070 PTFE/NBR/POM KHD 85 70 11 PDH 115 PHD 8570 PKP000850 PKP000850-PTN04
02F02 1200 A 24 03 02F02-1200-A-24-03 02F02-1200-A2403 02F021200A2403 K19 120-105 K19 120-105 PTFE/NBR/POM KHD 120 105 12,5 KHD 120 105 12.5 PDH 122 PHD 120105 PKP001200 PKP001200-PTN04
PDP 119 PHD 10085 PHD 10085P-Z20 PKP0P1000 PKP0P1000-Z2053
02F01 0700 A 24 03 02F01-0700-A-24-03 02F01-0700-A2403 02F010700A2403 K19 070-055 K19 070-055 PTFE/NBR/POM KHD 70 55 11 PDH 110 PHD 7055 PKP000700 PKP000700-PTN04
PDP 114
PDP 110 PHD 7055 PHD 7055P-Z20 PKP0P0700 PKP0P0700-Z2053
02F00 0550 A 24 03 02F00-0550-A-24-03 02F00-0550-A2403 02F000550A2403 K19 055-041 K19 055-041 PTFE/NBR/POM KHD 55 41 9 PDH 104 PHD 5541 PKP000550 PKP000550-PTN04
02F02 0800 A 24 03 02F02-0800-A-24-03 02F02-0800-A2403 02F020800A2403 KHD 80 65 12,5 KHD 80 65 12.5 PDH 114
K48 110-095/1 K48 110-095/1 NBR/TPE/POM PDP 120 PHD 11095 PHD 11095P-Z20 PKP0P1100 PKP0P1100-Z2053
PDP 112 PHD 7560 PHD 7560P-Z20 PKP0P0750 PKP0P0750-Z2053
02F00 0500 A 24 03 02F00-0500-A-24-03 02F00-0500-A2403 02F000500A2403 K19 050-036 K19 050-036 PTFE/NBR/POM KHD 50 36 9 PDH 102 PHD 5036 PKP000500 PKP000500-PTN04
02F02 1250 A 24 03 02F02-1250-A-24-03 02F02-1250-A2403 02F021250A2403 K19 125-110 K19 125-110 PTFE/NBR/POM KHD 125 110 12,5 KHD 125 110 12.5 PDH 124
PDP 103
PDP 107 PHD 6348 PHD 6348P-Z20 PKP0P0630 PKP0P0630-Z2053
02F02 1150 A 24 03 02F02-1150-A-24-03 02F02-1150-A2403 02F021150A2403 K19 115-100 K19 115-100 PTFE/NBR/POM KHD 115 100 12,5 KHD 115 100 12.5 PDH 121 PHD 115100 PKP001150 PKP001150-PTN04
02F00 0600 A 24 03 02F00-0600-A-24-03 02F00-0600-A2403 02F000600A2403 K19 060-046 K19 060-046 PTFE/NBR/POM KHD 60 46 9 PDH 105 PHD 6046 PKP000600 PKP000600-PTN04
02F01 0800 A 24 03 02F01-0800-A-24-03 02F01-0800-A2403 02F010800A2403 K19 080-065 K19 080-065 PTFE/NBR/POM KHD 80 65 11 PDH 113 PHD 8065 PKP000800 PKP000800-PTN04
02F01 0950 A 24 03 02F01-0950-A-24-03 02F01-0950-A2403 02F010950A2403 K19 095-080 K19 095-080 PTFE/NBR/POM KHD 95 80 11 PDH 118
02F02 0900 A 24 03 02F02-0900-A-24-03 02F02-0900-A2403 02F020900A2403 KHD 90 75 12,5 KHD 90 75 12.5 PDH 117
PDP 106
Cerca per codice
| Descrizione | Ø d | Ø D | L | Materiale | |
|---|---|---|---|---|---|
| DHD 30x40x8 B40 BN POM | 30,00 | 40,00 | 8,00 | PTFE+Bz/NBR/POM | |
| DHD 30x40x8 PU BN POM | 30,00 | 40,00 | 8,00 | PU/NBR/POM | |
| DHD 40x50x8 B40 BN POM | 40,00 | 50,00 | 8,00 | PTFE+Bz/NBR/POM | |
| DHD 40x50x8 PU BN POM | 40,00 | 50,00 | 8,00 | PU/NBR/POM | |
| DHD 36x50x9 B40 BN POM | 36,00 | 50,00 | 9,00 | PTFE+Bz/NBR/POM | |
| DHD 36x50x9 PU BN POM | 36,00 | 50,00 | 9,00 | PU/NBR/POM | |
| DHD 41x55x9 B40 BN POM | 41,00 | 55,00 | 9,00 | PTFE+Bz/NBR/POM | |
| DHD 41x55x9 PU BN POM | 41,00 | 55,00 | 9,00 | PU/NBR/POM | |
| DHD 50x60x8 B40 BN POM | 50,00 | 60,00 | 8,00 | PTFE+Bz/NBR/POM | |
| DHD 50x60x8 PU BN POM | 50,00 | 60,00 | 8,00 | PU/NBR/POM | |
| DHD 46x60x9 B40 BN POM | 46,00 | 60,00 | 9,00 | PTFE+Bz/NBR/POM | |
| DHD 46x60x9 PU BN POM | 46,00 | 60,00 | 9,00 | PU/NBR/POM | |
| DHD 53x63x8 B40 BN POM | 53,00 | 63,00 | 8,00 | PTFE+Bz/NBR/POM | |
| DHD 53x63x8 PU BN POM | 53,00 | 63,00 | 8,00 | PU/NBR/POM | |
| DHD 48x63x11 B40 BN POM | 48,00 | 63,00 | 11,00 | PTFE+Bz/NBR/POM | |
| DHD 48x63x11 PU BN POM | 48,00 | 63,00 | 11,00 | PU/NBR/POM | |
| DHD 50x65x11 B40 BN POM | 50,00 | 65,00 | 11,00 | PTFE+Bz/NBR/POM | |
| DHD 50x65x11 PU BN POM | 50,00 | 65,00 | 11,00 | PU/NBR/POM | |
| DHD 60x70x8 B40 BN POM | 60,00 | 70,00 | 8,00 | PTFE+Bz/NBR/POM | |
| DHD 60x70x8 PU BN POM | 60,00 | 70,00 | 8,00 | PU/NBR/POM | |
| DHD 55x70x11 B40 BN POM | 55,00 | 70,00 | 11,00 | PTFE+Bz/NBR/POM | |
| DHD 55x70x11 PU BN POM | 55,00 | 70,00 | 11,00 | PU/NBR/POM | |
| DHD 60x75x11 B40 BN POM | 60,00 | 75,00 | 11,00 | PTFE+Bz/NBR/POM | |
| DHD 60x75x11 PU BN POM | 60,00 | 75,00 | 11,00 | PU/NBR/POM | |
| DHD 65x80x11 B40 BN POM | 65,00 | 80,00 | 11,00 | PTFE+Bz/NBR/POM | |
| DHD 65x80x11 PU BN POM | 65,00 | 80,00 | 11,00 | PU/NBR/POM | |
| DHD 65x80x12,5 B40 BN POM | 65,00 | 80,00 | 12,50 | PTFE+Bz/NBR/POM | |
| DHD 65x80x12,5 PU BN POM | 65,00 | 80,00 | 12,50 | PU/NBR/POM | |
| DHD 70x85x11 B40 BN POM | 70,00 | 85,00 | 11,00 | PTFE+Bz/NBR/POM | |
| DHD 70x85x11 PU BN POM | 70,00 | 85,00 | 11,00 | PU/NBR/POM | |
| DHD 75x90x11 B40 BN POM | 75,00 | 90,00 | 11,00 | PTFE+Bz/NBR/POM | |
| DHD 75x90x11 PU BN POM | 75,00 | 90,00 | 11,00 | PU/NBR/POM | |
| DHD 75x90x12,5 B40 BN POM | 75,00 | 90,00 | 12,50 | PTFE+Bz/NBR/POM | |
| DHD 75x90x12,5 PU BN POM | 75,00 | 90,00 | 12,50 | PU/NBR/POM | |
| DHD 80x95x11 B40 BN POM | 80,00 | 95,00 | 11,00 | PTFE+Bz/NBR/POM | |
| DHD 80x95x11 PU BN POM | 80,00 | 95,00 | 11,00 | PU/NBR/POM | |
| DHD 85x100x12,5 B40 BN POM | 85,00 | 100,00 | 12,50 | PTFE+Bz/NBR/POM | |
| DHD 85x100x12,5 PU BN POM | 85,00 | 100,00 | 12,50 | PU/NBR/POM | |
| DHD 90x105x12,5 B40 BN POM | 90,00 | 105,00 | 12,50 | PTFE+Bz/NBR/POM | |
| DHD 90x105x12,5 PU BN POM | 90,00 | 105,00 | 12,50 | PU/NBR/POM | |
| DHD 90x105x13,5 B40 BN POM | 90,00 | 105,00 | 13,50 | PTFE+Bz/NBR/POM | |
| DHD 88x105x14 B40 BN POM | 88,00 | 105,00 | 14,00 | PTFE+Bz/NBR/POM | |
| DHD 90x105x14 B40 BN POM | 90,00 | 105,00 | 14,00 | PTFE+Bz/NBR/POM | |
| DHD 95x110x12,5 B40 BN POM | 95,00 | 110,00 | 12,50 | PTFE+Bz/NBR/POM | |
| DHD 95x110x12,5 PU BN POM | 95,00 | 110,00 | 12,50 | PU/NBR/POM | |
| DHD 100x115x12,5 PU BN POM | 100,00 | 115,00 | 12,50 | PU/NBR/POM | |
| DHD 100x115x12,5 B40 BN POM | 100,00 | 115,00 | 12,50 | PTFE+Bz/NBR/POM | |
| DHD 105x120x12,5 B40 BN POM | 105,00 | 120,00 | 12,50 | PTFE+Bz/NBR/POM | |
| DHD 105x120x12,5 PU BN POM | 105,00 | 120,00 | 12,50 | PU/NBR/POM | |
| DHD 110x125x12,5 B40 BN POM | 110,00 | 125,00 | 12,50 | PTFE+Bz/NBR/POM |
