TBMGuarnizione a doppio effetto per Pistone

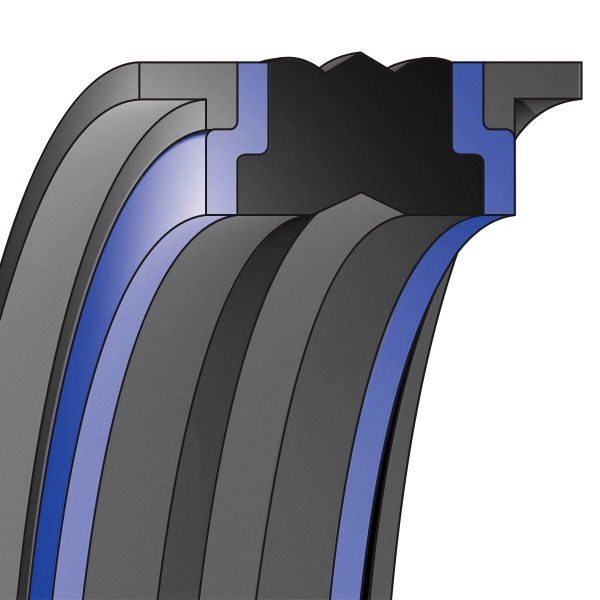

Guarnizione di tenuta per pistone a doppio effetto con anelli guida integrati. Studiata per essere alloggiata in sedi chiuse, offre il vantaggio di ingombri ridotti ed economia di realizzazione delle parti metalliche. Frequentemente utilizzata su pistoni monoblocco di cilindri idraulici. Materiali standard: gomma nitrilica, con anelli antiestrusione in TPE ed anelli guida in resina poliacetalica.
Caratteristiche
- Temperatura: da -40 a 110 °C
- Pressione massima: 400 bar
- Velocità massima: 0,5 m/s
Utilizzo
Questo prodotto è intercambiabile con:
DBM - PCA - TPM - PCB - DAS - L43 - SIMKO5 - 780 - K03 - KGD - KDSA - KDSB - K18 - LL43P - FP.K - FPK - TPM - D-A-S - ZW - ZX - MHM - ZS - L26 - DBM/M - TPL
DAS 45 29 DAS 4529 DBM 177114 DBM177114 K518 045-029 K518 045-029 NBR/TPE/POM PCB0N0450-NCRO TPM 177114 TPM 9013
DAS 40 30 DAS 4030 DBM 157118 DBM157118 K518 X 040-030 K518 X 040-030 NBR/TPE/PA KK03 5P 40 30 16,4 NB8055 KK03 5P 40,0 30,0 16,4 NB8055 KK03 5P 40.0 30.0 16.4 NB8055 PCB3A0400-NCRO
DBM 196149/SI DBM196149/SI DPS 5038 K518 050-038 K518 050-038 NBR/TPE/POM KK03 5P 50 38 20,5 NB8055 KK03 5P 50,0 38,0 20,5 NB8055 KK03 5P 50.0 38.0 20.5 NB8055 PCE000500-N00OC TPS/G 196149 TPS/G 9507
DAS 25 15 DAS 2515 DBM 98059 DBM98059 K18 025-015 K18 025-015 NBR/TPE/POM KK03 5P 25 15 16,4 NB8055 KK03 5P 25,0 15,0 16,4 NB8055 KK03 5P 25.0 15.0 16.4 NB8055 PCB1N0250-NCRO TPM 98059 TPM 9001
DBM 157125/SI DBM157125/SI DPS 4032 K518 040-032 K518 040-032 NBR/TPE/POM KK03 5P 40 32 15,5 NB8055 KK03 5P 40,0 32,0 15,5 NB8055 KK03 5P 40.0 32.0 15.5 NB8055 PCE000400-N00OC TPS/G 157125 TPS/G 9505
DBM 216177 DBM216177 K518 055-045 K518 055-045 NBR/TPE/POM KK03 5P 55 45 12,5 NB8055 KK03 5P 55,0 45,0 12,5 NB8055 KK03 5P 55.0 45.0 12.5 NB8055 TPM 216177 TPM 9019
DBM 118086/SI DBM118086/SI K18 030-022 K18 030-022 NBR/TPE/POM KK03 5P 30 22 13,5 NB8055 KK03 5P 30,0 22,0 13,5 NB8055 KK03 5P 30.0 22.0 13.5 NB8055 TPS/G 118086 TPS/G 9502
DAS 60 44 DAS 6044 DBM 236173 DBM236173 K518 X 060-044/1 K518 X 060-044/1 NBR/TPE/PA KK03 5P 60 44 18,4 NB8055 KK03 5P 60,0 44,0 18,4 NB8055 KK03 5P 60.0 44.0 18.4 NB8055 PCB1A0600-NCRO
DAS 20 11 DAS 2011 DBM 078043/M DBM078043/M K18 020-011 K18 020-011 NBR/TPE/POM KK03 5P 20 11 13,5 NB8055 KK03 5P 20,0 11,0 13,5 NB8055 KK03 5P 20.0 11.0 13.5 NB8055 PCB0N0200-NCRO TPL 078043 TPL 9301
DAS 42 28 DAS 4228 DBM 165110/M DBM165110/M K18 042-028 K18 042-028 NBR/TPE/POM PCB0N0420-NCRO TPL 165110 TPL 9310
DBM 137094/SI DBM137094/SI TPS/G 137094 TPS/G 9504/1
DAS 45 31 DAS 4531 DBM 177122/M DBM177122/M K18 045-031 K18 045-031 NBR/TPE/POM KK03 5P 45 31 15,5 NB8055 KK03 5P 45,0 31,0 15,5 NB8055 KK03 5P 45.0 31.0 15.5 NB8055 PCB1A0450-NCRO TPL 177122 TPL 9311
DAS 45 35 DAS 4535 DBM 177137 DBM177137 K518 X 045-035 K518 X 045-035 NBR/TPE/PA KK03 5P 45 35 16,4 NB8055 KK03 5P 45,0 35,0 16,4 NB8055 KK03 5P 45.0 35.0 16.4 NB8055 PCB2N0450-NCRO
DBM 098066/SI DBM098066/SI K18 025-017/1 K18 025-017/1 NBR/TPE/POM KK03 5P 25 17 13,5 NB8055 KK03 5P 25,0 17,0 13,5 NB8055 KK03 5P 25.0 17.0 13.5 NB8055 TPS/G 098066 TPS/G 9501
DBM 137106/SI DBM137106/SI DPS 3527 K18 035-027 K18 035-027 NBR/TPE/POM PCE000350-N00OC TPS/G 137106 TPS/G 9504
DBM 125083/SI DBM125083/SI TPS/G 125083 TPS/G 9503/1
DBM 125086/1 DBM125086/1 K18 032-022/2 K18 032-022/2 NBR/TPE/POM KK03 5P 32 22 12,5 NB8055 KK03 5P 32,0 22,0 12,5 NB8055 KK03 5P 32.0 22.0 12.5 NB8055 TPM 125086 TPM 9004
DBM 125094/SI DBM125094/SI DPS 3224 K518 032-024 K518 032-024 NBR/TPE/POM KK03 5P 32 24 15,5 NB8055 KK03 5P 32,0 24,0 15,5 NB8055 KK03 5P 32.0 24.0 15.5 NB8055 PCE000320-N00OC TPS/G 125094 TPS/G 9503
DAS 25 15/2 DAS 2515/2 DBM 098059/2 DBM098059/2 K18 025-015/2 K18 025-015/2 NBR/TPE/POM KK03 5P 25 15 12,5 NB8055 KK03 5P 25,0 15,0 12,5 NB8055 KK03 5P 25.0 15.0 12.5 NB8055 PCB0N0250-NCRO TPM 98059 TPM 9000
DBM 141102/M DBM141102/M TPL 141102 TPL 9308
DBM 196137 DBM196137 K18 050-035 K18 050-035 NBR/TPE/POM KK03 5P 50 35 20 NB8055 KK03 5P 50,0 35,0 20,0 NB8055 KK03 5P 50.0 35.0 20.0 NB8055 TPM 9016
DAS 22 13 DAS 2213 DBM 086051/M DBM086051/M K18 022-013 K18 022-013 NBR/TPE/POM PCB0N0220-NCRO TPL 086051 TPL 9302
DAS 32 22/1 DAS 3222/1 DBM 125086/M DBM125086/M K18 032-022/1 K18 032-022/1 NBR/TPE/POM KK03 5P 32 22 15,5 NB8055 KK03 5P 32,0 22,0 15,5 NB8055 KK03 5P 32.0 22.0 15.5 NB8055 PCB0B0320-NCRO TPL 125086 TPL 9306
DAS 40 26 DAS 4026 DBM 157102/M DBM157102/M K18 040-026 K18 040-026 NBR/TPE/POM KK03 5P 40 26 15,5 NB8055 KK03 5P 40,0 26,0 15,5 NB8055 KK03 5P 40.0 26.0 15.5 NB8055 PCB1A0400-NCRO TPL 157102 TPL 9309
DAS 32 22 DAS 3222 DBM 125086 DBM125086 K518 032-022 K518 032-022 NBR/TPE/POM KK03 5P 32 22 16,4 NB8055 KK03 5P 32,0 22,0 16,4 NB8055 KK03 5P 32.0 22.0 16.4 NB8055 PCB1A0320-NCRO TPM 9004
DBM 157118/2 DBM157118/2 K18 040-030/2 K18 040-030/2 NBR/TPE/POM TPM 157118 TPM 9010
DBM 125094 DBM125094 DPS 3224/1 K18 032-024/1 K18 032-024/1 NBR/TPE/POM KK03 5P 32 24 10 NB8055 KK03 5P 32,0 24,0 10,0 NB8055 KK03 5P 32.0 24.0 10.0 NB8055 PCE100320-N00OC TPM 125094 TPM 9006
DAS 50 34/1 DAS 5034/1 DBM 196133/M DBM196133/M K518 X 050-034 K518 X 050-034 NBR/TPE/PA KK03 5P 50 34 20,5 NB8055 KK03 5P 50,0 34,0 20,5 NB8055 KK03 5P 50.0 34.0 20.5 NB8055 PCB0B0500-NCRO TPL 196133 TPL 9312
DBM 098059/1 DBM098059/1 K18 025-015/1 K18 025-015/1 NBR/TPE/POM TPM 98059 TPM 9000/1
DBM 118075/SI DBM118075/SI TPS/G 118075 TPS/G 9502/1
DBM 196157/1 DBM196157/1 TPM 9017/1
DBM 157114/SI DBM157114/SI TPS/G 157114 TPS/G 9505/1
DAS 40 30/2 DAS 4030/2 DBM 157118/1 DBM157118/1 K518 040-030/1 K518 040-030/1 NBR/TPE/POM KK03 5P 40 30 12,5 NB8055 KK03 5P 40,0 30,0 12,5 NB8055 KK03 5P 40.0 30.0 12.5 NB8055 PCB2E0400-NCRO
DBM 098055/SI DBM098055/SI TPS/G 098055 TPS/G 9501/1
DBM 118066 DBM118066 K18 030-017 K18 030-017 NBR/TPE/POM KK03 5P 30 17 15,4 NB8055 KK03 5P 30,0 17,0 15,4 NB8055 KK03 5P 30.0 17.0 15.4 NB8055 PCB000300-NCRO TPM 118066 TPM 9003
DAS 30 21 DAS 3021 DBM 118083/M DBM118083/M K518 030-021 K518 030-021 NBR/TPE/POM KK03 5P 30 21 13,5 NB8055 KK03 5P 30,0 21,0 13,5 NB8055 KK03 5P 30.0 21.0 13.5 NB8055 PCB0A0300-NCRO TPL 118078 TPL 9305
DAS 56 40 DAS 5640 DBM 220157/M DBM220157/M K18 056-040 K18 056-040 NBR/TPE/POM KK03 5P 56 40 20,5 NB8055 KK03 5P 56,0 40,0 20,5 NB8055 KK03 5P 56.0 40.0 20.5 NB8055 PCB0A0560-NCRO TPL 220157 TPL 9314
DAS 50 34 DAS 5034 DBM 196133 DBM196133 K518 X 050-034/1 K518 X 050-034/1 NBR/TPE/PA KK03 5P 50 34 18,4 NB8055 KK03 5P 50,0 34,0 18,4 NB8055 KK03 5P 50.0 34.0 18.4 NB8055 PCB1A0500-NCRO
DBM 98066 DBM98066 DPS 2517/1 KK03 5P 25 17 10 NB8055 KK03 5P 25,0 17,0 10,0 NB8055 KK03 5P 25.0 17.0 10.0 NB8055 PCE000250-N00OC TPM 98066 TPM 9002
DBM 177145/SI DBM177145/SI DPS 4537 K18 045-037 K18 045-037 NBR/TPE/POM KK03 5P 45 37 15,5 NB8055 KK03 5P 45,0 37,0 15,5 NB8055 KK03 5P 45.0 37.0 15.5 NB8055 PCE000450-N00OC TPS/G 177145 TPS/G 9506
DAS 55 39/1 DAS 5539/1 DBM 216153/M DBM216153/M K518 X 055-039 K518 X 055-039 NBR/TPE/PA KK03 5P 55 39 20,5 NB8055 KK03 5P 55,0 39,0 20,5 NB8055 KK03 5P 55.0 39.0 20.5 NB8055 PCB0B0550-NCRO TPL 216153 TPL 9313
DAS 55 39 DAS 5539 DBM 216153 DBM216153 K518 X 055-039/1 K518 X 055-039/1 NBR/TPE/PA KK03 5P 55 39 18,4 NB8055 KK03 5P 55,0 39,0 18,4 NB8055 KK03 5P 55.0 39.0 18.4 NB8055 PCB1A0550-NCRO
DBM 216175/SI DBM216175/SI DPS 5543 PCE000550-N00OC TPS/G 216175 TPS/G 9507/1
DAS 25 16 DAS 2516 DBM 098063/M DBM098063/M K518 025-016 K518 025-016 NBR/TPE/POM KK03 5P 25 16 13,5 NB8055 KK03 5P 25,0 16,0 13,5 NB8055 KK03 5P 25.0 16.0 13.5 NB8055 PCB2N0250-NCRO TPL 098062 TPL 9303
DAS 35 25/1 DAS 3525/1 DBM 137098/M DBM137098/M PCB0B0350-NCRO TPL 137098 TPL 9307
DAS 35 25 DAS 3525 DBM 137098 DBM137098 K518 035-025 K518 035-025 NBR/TPE/POM KK03 5P 35 25 16,4 NB8055 KK03 5P 35,0 25,0 16,4 NB8055 KK03 5P 35.0 25.0 16.4 NB8055 PCB1A0350-NCRO TPM 137098 TPM 9007
DBM 196157 DBM196157 DPS 5040/1 K18 050-040 K18 050-040 NBR/TPE/POM KK03 5P 50 40 12,5 NB8055 KK03 5P 50,0 40,0 12,5 NB8055 KK03 5P 50.0 40.0 12.5 NB8055 PCE100500-N00OC TPM 196157 TPM 9017
DAS 28 19 DAS 2819 DBM 110075/M DBM110075/M K18 028-019 K18 028-019 NBR/TPE/POM PCB0N0280-NCRO TPL 110075 TPL 9304
DBM 157125 DBM157125 DPS 4032/1 K518 040-032/1 K518 040-032/1 NBR/TPE/POM KK03 5P 40 32 10 NB8055 KK03 5P 40,0 32,0 10,0 NB8055 KK03 5P 40.0 32.0 10.0 NB8055 PCE100400-N00OC TPM 157125 TPM 9011
DAS 40 24 DAS 4024 DBM 157094 DBM157094 K518 X 040-024 K518 X 040-024 NBR/TPE/PA KK03 5P 40 24 18,4 NB8055 KK03 5P 40,0 24,0 18,4 NB8055 KK03 5P 40.0 24.0 18.4 NB8055 PCB0A0400-NCRO TPM 157094
Cerca per codice
| Descrizione | Ø d | Ø D | Ø M | Ø F | L | L1 | Materiale | |
|---|---|---|---|---|---|---|---|---|
| TBM 078043/M BN POM TPE | 11,00 | 20,00 | 17,00 | 19,00 | 13,50 | 2,10 | NBR/POM/TPE | |
| TBM 086051/M BN POM TPE | 13,00 | 22,00 | 19,00 | 21,00 | 13,50 | 2,10 | NBR/POM/TPE | |
| TBM 098066 BN POM TPE | 17,00 | 25,00 | 22,00 | 24,00 | 10,00 | 4,00 | NBR/POM/TPE | |
| TBM 098059/1 BN POM TPE | 15,00 | 25,00 | 21,00 | 24,00 | 12,40 | 4,00 | NBR/POM/TPE | |
| TBM 098059/2 BN POM TPE | 15,00 | 25,00 | 22,00 | 24,00 | 12,50 | 4,00 | NBR/POM/TPE | |
| TBM 098063/M BN POM TPE | 16,00 | 25,00 | 22,00 | 24,00 | 13,50 | 2,10 | NBR/POM/TPE | |
| TBM 098055/SI BN POM TPE | 14,00 | 25,00 | 21,00 | 24,40 | 13,50 | 3,20 | NBR/POM/TPE | |
| TBM 098066/SI BN POM TPE | 17,00 | 25,00 | 21,00 | 24,40 | 13,50 | 3,20 | NBR/POM/TPE | |
| TBM 098059 BN POM TPE | 15,00 | 25,00 | 21,45 | 23,50 | 16,40 | 6,35 | NBR/POM/TPE | |
| TBM 110075/M BN POM TPE | 19,00 | 28,00 | 25,00 | 27,00 | 13,50 | 2,10 | NBR/POM/TPE | |
| TBM 118083/M BN POM TPE | 21,00 | 30,00 | 27,00 | 29,00 | 13,50 | 2,10 | NBR/POM/TPE | |
| TBM 118075/SI BN POM TPE | 19,00 | 30,00 | 26,00 | 29,40 | 13,50 | 3,20 | NBR/POM/TPE | |
| TBM 118086/SI BN POM TPE | 22,00 | 30,00 | 26,00 | 29,40 | 13,50 | 3,20 | NBR/POM/TPE | |
| TBM 118066 BN POM TPE | 17,00 | 30,00 | 26,50 | 28,50 | 15,40 | 6,35 | NBR/POM/TPE | |
| TBM 125094 BN POM TPE | 24,00 | 32,00 | 29,00 | 31,00 | 10,00 | 4,00 | NBR/POM/TPE | |
| TBM 125086/1 BN POM TPE | 22,00 | 32,00 | 29,00 | 31,00 | 12,50 | 4,00 | NBR/POM/TPE | |
| TBM 125086/M BN POM TPE | 22,00 | 32,00 | 28,00 | 31,00 | 15,50 | 2,60 | NBR/POM/TPE | |
| TBM 125083/SI BN POM TPE | 21,00 | 32,00 | 28,00 | 31,40 | 15,50 | 3,20 | NBR/POM/TPE | |
| TBM 125094/SI BN POM TPE | 24,00 | 32,00 | 28,00 | 31,40 | 15,50 | 3,20 | NBR/POM/TPE | |
| TBM 125086 BN POM TPE | 22,00 | 32,00 | 28,50 | 30,50 | 16,40 | 6,35 | NBR/POM/TPE | |
| TBM 137098/M BN POM TPE | 25,00 | 35,00 | 31,00 | 34,00 | 15,50 | 2,60 | NBR/POM/TPE | |
| TBM 137094/SI BN POM TPE | 24,00 | 35,00 | 31,00 | 34,40 | 15,50 | 3,20 | NBR/POM/TPE | |
| TBM 137106/SI BN POM TPE | 27,00 | 35,00 | 31,00 | 34,40 | 15,50 | 3,20 | NBR/POM/TPE | |
| TBM 137098 BN POM TPE | 25,00 | 35,00 | 31,40 | 33,50 | 16,40 | 6,35 | NBR/POM/TPE | |
| TBM 141102/M BN POM TPE | 26,00 | 36,00 | 32,00 | 35,00 | 15,50 | 2,60 | NBR/POM/TPE | |
| TBM 157125 BN POM TPE | 32,00 | 40,00 | 37,00 | 39,00 | 10,00 | 4,00 | NBR/POM/TPE | |
| TBM 157118/2 BN POM TPE | 30,00 | 40,00 | 36,00 | 39,00 | 12,50 | 4,00 | NBR/POM/TPE | |
| TBM 157118/1 BN POM TPE | 30,00 | 40,00 | 37,00 | 39,00 | 12,50 | 4,00 | NBR/POM/TPE | |
| TBM 157102/M BN POM TPE | 26,00 | 40,00 | 36,00 | 39,00 | 15,50 | 2,60 | NBR/POM/TPE | |
| TBM 157114/SI BN POM TPE | 29,00 | 40,00 | 36,00 | 39,40 | 15,50 | 3,20 | NBR/POM/TPE | |
| TBM 157125/SI BN POM TPE | 32,00 | 40,00 | 36,00 | 39,40 | 15,50 | 3,20 | NBR/POM/TPE | |
| TBM 157118 BN POM TPE | 30,00 | 40,00 | 35,40 | 38,50 | 16,40 | 6,35 | NBR/POM/TPE | |
| TBM 157094 BN POM TPE | 24,00 | 40,00 | 35,40 | 38,70 | 18,40 | 6,35 | NBR/POM/TPE | |
| TBM 165110/M BN POM TPE | 28,00 | 42,00 | 38,00 | 41,00 | 15,50 | 2,60 | NBR/POM/TPE | |
| TBM 177122/M BN POM TPE | 31,00 | 45,00 | 41,00 | 44,00 | 15,50 | 2,60 | NBR/POM/TPE | |
| TBM 177145/SI BN POM TPE | 37,00 | 45,00 | 41,00 | 44,40 | 15,50 | 3,20 | NBR/POM/TPE | |
| TBM 177137 BN POM TPE | 35,00 | 45,00 | 40,40 | 43,50 | 16,40 | 6,35 | NBR/POM/TPE | |
| TBM 177114 BN POM TPE | 29,00 | 45,00 | 40,40 | 43,70 | 18,40 | 6,35 | NBR/POM/TPE | |
| TBM 196157/1 BN POM TPE | 40,00 | 50,00 | 46,00 | 49,00 | 11,30 | 4,00 | NBR/POM/TPE | |
| TBM 196157 BN POM TPE | 40,00 | 50,00 | 47,00 | 49,00 | 12,50 | 4,00 | NBR/POM/TPE | |
| TBM 196133 BN POM TPE | 34,00 | 50,00 | 45,41 | 48,70 | 18,40 | 6,35 | NBR/POM/TPE | |
| TBM 196137 BN POM TPE | 35,00 | 50,00 | 46,00 | 48,50 | 20,00 | 5,00 | NBR/POM/TPE | |
| TBM 196133/M BN POM TPE | 34,00 | 50,00 | 46,00 | 49,00 | 20,50 | 3,10 | NBR/POM/TPE | |
| TBM 196149/SI BN POM TPE | 38,00 | 50,00 | 46,00 | 49,40 | 20,50 | 4,20 | NBR/POM/TPE | |
| TBM 216177 BN POM TPE | 45,00 | 55,00 | 52,00 | 54,00 | 12,50 | 4,00 | NBR/POM/TPE | |
| TBM 216153 BN POM TPE | 39,00 | 55,00 | 50,37 | 53,65 | 18,40 | 6,35 | NBR/POM/TPE | |
| TBM 216153/M BN POM TPE | 39,00 | 55,00 | 51,00 | 54,00 | 20,50 | 3,10 | NBR/POM/TPE | |
| TBM 216175/SI BN POM TPE | 43,00 | 55,00 | 51,00 | 54,90 | 20,50 | 4,20 | NBR/POM/TPE | |
| TBM 220157/M BN POM TPE | 40,00 | 56,00 | 52,00 | 55,00 | 20,50 | 3,10 | NBR/POM/TPE | |
| TBM 236173 BN POM TPE | 44,00 | 60,00 | 55,39 | 58,65 | 18,40 | 6,35 | NBR/POM/TPE |
