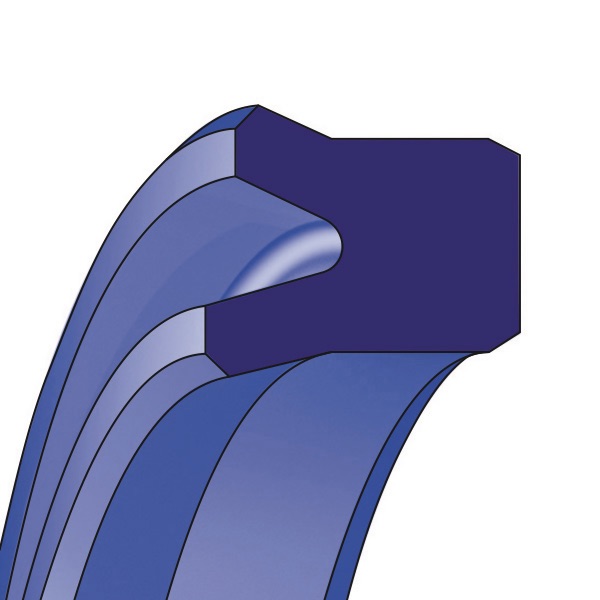

ATEGuarnizione a doppio labbro per Pistone
Guarnizione di tenuta a doppio labbro per pistone a semplice effetto con profilo asimmetrico. Garantisce un’ottima tenuta anche in caso di basse pressioni o condizioni particolarmente difficili quali piccoli disassamenti o carichi radiali. Materiale standard: poliuretano, a richiesta disponibile in materiali diversi.
Caratteristiche
- Temperatura: da -40 a 110 °C
- Pressione massima: 400 bar
- Velocità massima: 0,5 m/s
Utilizzo
Questo prodotto è intercambiabile con:
TTE - RU0 - KNA 28 - MA28 - PUA - PSA - NA300 - B7 - 606 - RSE - T21 - TM21 - K01-P - KD - GPE - KDA - K23 - MPUC - MPTL
| Descrizione | Ø d | Ø D | L |
|---|---|---|---|
| ATE 4,5x12x4,5 PU | 4,50 | 12,00 | 4,50 |
| ATE 5x12x6 PU | 5,00 | 12,00 | 6,00 |
| ATE 6,35x12,7x5,26 PU | 6,35 | 12,70 | 5,26 |
| ATE 8,6x13,8x3,3 PU | 8,60 | 13,80 | 3,30 |
| ATE 8x14x5 PU | 8,00 | 14,00 | 5,00 |
| ATE 8x14x6,8 PU | 8,00 | 14,00 | 6,80 |
| ATE 6x14x7 PU | 6,00 | 14,00 | 7,00 |
| ATE 6x14x9 PU | 6,00 | 14,00 | 9,00 |
| ATE 9x15x9 PU | 9,00 | 15,00 | 9,00 |
| ATE 11x16x4 PU | 11,00 | 16,00 | 4,00 |
| ATE 10x16x4,5 PU | 10,00 | 16,00 | 4,50 |
| ATE 8x16x6,5 PU | 8,00 | 16,00 | 6,50 |
| ATE 9x16x6,5 PU | 9,00 | 16,00 | 6,50 |
| ATE 10x16x6,5 PU | 10,00 | 16,00 | 6,50 |
| ATE 10x16x9 PU | 10,00 | 16,00 | 9,00 |
| ATE 6x16x11 PU | 6,00 | 16,00 | 11,00 |
| ATE 12,05x17,46x3,67 PU | 12,05 | 17,46 | 3,67 |
| ATE 12,7x19,05x3,67 PU | 12,70 | 19,05 | 3,67 |
| ATE 14x20x4,7 PU | 14,00 | 20,00 | 4,70 |
| ATE 14x20x6 PU | 14,00 | 20,00 | 6,00 |
| ATE 12x20x6,5 PU | 12,00 | 20,00 | 6,50 |
| ATE 14x20x6,5 PU | 14,00 | 20,00 | 6,50 |
| ATE 12x20x7,5 PU | 12,00 | 20,00 | 7,50 |
| ATE 14,28x20,63x7,35 PU | 14,28 | 20,63 | 7,35 |
| ATE 16x22x4,5 PU | 16,00 | 22,00 | 4,50 |
| ATE 14x22x5,5 PU | 14,00 | 22,00 | 5,50 |
| ATE 16x22x6,5 PU | 16,00 | 22,00 | 6,50 |
| ATE 13x22x8 PU | 13,00 | 22,00 | 8,00 |
| ATE 10x22x9 PU | 10,00 | 22,00 | 9,00 |
| ATE 12x22x9 PU | 12,00 | 22,00 | 9,00 |
| ATE 12,7x22,22x7,35 PU | 12,70 | 22,22 | 7,35 |
| ATE 18x24x6 PU | 18,00 | 24,00 | 6,00 |
| ATE 19x25x3,5 PU | 19,00 | 25,00 | 3,50 |
| ATE 15x25x6 PU | 15,00 | 25,00 | 6,00 |
| ATE 18x25x6 PU | 18,00 | 25,00 | 6,00 |
| ATE 17x25x6,5 PU | 17,00 | 25,00 | 6,50 |
| ATE 18,5x25x7 PU | 18,50 | 25,00 | 7,00 |
| ATE 19x25x7 PU | 19,00 | 25,00 | 7,00 |
| ATE 15x25x9 PU | 15,00 | 25,00 | 9,00 |
| ATE 10x25x11 PU | 10,00 | 25,00 | 11,00 |
| ATE 18x26x6,5 PU | 18,00 | 26,00 | 6,50 |
| ATE 18x26x8 PU | 18,00 | 26,00 | 8,00 |
| ATE 17,46x26,99x7,35 PU | 17,46 | 26,99 | 7,35 |
| ATE 20x28x8 PU | 20,00 | 28,00 | 8,00 |
| ATE 16x28x10 PU | 16,00 | 28,00 | 10,00 |
| ATE 19,05x28,57x7,35 PU | 19,05 | 28,57 | 7,35 |
| ATE 22x30x7 PU | 22,00 | 30,00 | 7,00 |
| ATE 24x30x7 PU | 24,00 | 30,00 | 7,00 |
| ATE 20x30x8 PU | 20,00 | 30,00 | 8,00 |
| ATE 20x30x9 PU | 20,00 | 30,00 | 9,00 |
| ATE 15x30x11 PU | 15,00 | 30,00 | 11,00 |
| ATE 19,05x31,75x7,35 PU | 19,05 | 31,75 | 7,35 |
| ATE 19,05x31,75x8,93 PU | 19,05 | 31,75 | 8,93 |
| ATE 22x32x6 PU | 22,00 | 32,00 | 6,00 |
| ATE 26x32x6 PU | 26,00 | 32,00 | 6,00 |
| ATE 24x32x6,3 PU | 24,00 | 32,00 | 6,30 |
| ATE 24x32x6,5 PU | 24,00 | 32,00 | 6,50 |
| ATE 22x32x8 PU | 22,00 | 32,00 | 8,00 |
| ATE 22x32x9 PU | 22,00 | 32,00 | 9,00 |
| ATE 22x32x11 PU | 22,00 | 32,00 | 11,00 |
| ATE 28x34x6 PU | 28,00 | 34,00 | 6,00 |
| ATE 22x34x9,4 PU | 22,00 | 34,00 | 9,40 |
| ATE 22x34x10 PU | 22,00 | 34,00 | 10,00 |
| ATE 22,22x34,92x7,35 PU | 22,22 | 34,92 | 7,35 |
| ATE 27x35x6 PU | 27,00 | 35,00 | 6,00 |
| ATE 25x35x7,5 PU | 25,00 | 35,00 | 7,50 |
| ATE 25x35x8 PU | 25,00 | 35,00 | 8,00 |
| ATE 25x35x9 PU | 25,00 | 35,00 | 9,00 |
| ATE 20x35x11 PU | 20,00 | 35,00 | 11,00 |
| ATE 27x35x11 PU | 27,00 | 35,00 | 11,00 |
| ATE 24x36x7 PU | 24,00 | 36,00 | 7,00 |
| ATE 28x36x8 PU | 28,00 | 36,00 | 8,00 |
| ATE 24x36,5x7 PU | 24,00 | 36,50 | 7,00 |
| ATE 25,4x36,51x7,35 PU | 25,40 | 36,51 | 7,35 |
| ATE 21x37x13 PU | 21,00 | 37,00 | 13,00 |
| ATE 31x38x5,2 PU | 31,00 | 38,00 | 5,20 |
| ATE 28x38x8 PU | 28,00 | 38,00 | 8,00 |
| ATE 25,4x38,1x8,93 PU | 25,40 | 38,10 | 8,93 |
| ATE 32x39x6 PU | 32,00 | 39,00 | 6,00 |
| ATE 26,99x39,69x7,35 PU | 26,99 | 39,69 | 7,35 |
| ATE 32x40x3,75 PU | 32,00 | 40,00 | 3,75 |
| ATE 30x40x6 PU | 30,00 | 40,00 | 6,00 |
| ATE 32x40x6 PU | 32,00 | 40,00 | 6,00 |
| ATE 32x40x6,5 PU | 32,00 | 40,00 | 6,50 |
| ATE 30x40x7 PU | 30,00 | 40,00 | 7,00 |
| ATE 30x40x7,5 PU | 30,00 | 40,00 | 7,50 |
| ATE 30x40x8 PU | 30,00 | 40,00 | 8,00 |
| ATE 32x40x9 PU | 32,00 | 40,00 | 9,00 |
| ATE 33x40x9 PU | 33,00 | 40,00 | 9,00 |
| ATE 28x40x10 PU | 28,00 | 40,00 | 10,00 |
| ATE 25x40x11 PU | 25,00 | 40,00 | 11,00 |
| ATE 28x40x11 PU | 28,00 | 40,00 | 11,00 |
| ATE 30x40x11 PU | 30,00 | 40,00 | 11,00 |
| ATE 30,16x41,27x7,35 PU | 30,16 | 41,27 | 7,35 |
| ATE 34,5x42x4,7 PU | 34,50 | 42,00 | 4,70 |
| ATE 32x42x11 PU | 32,00 | 42,00 | 11,00 |
| ATE 30,16x42,86x10,52 PU | 30,16 | 42,86 | 10,52 |
| ATE 38x43x4,3 PU | 38,00 | 43,00 | 4,30 |
| ATE 25x43x10 PU | 25,00 | 43,00 | 10,00 |
| ATE 35x43x10 PU | 35,00 | 43,00 | 10,00 |
| ATE 20x44x12 PU | 20,00 | 44,00 | 12,00 |
| ATE 34,92x44,45x8 PU | 34,92 | 44,45 | 8,00 |
| ATE 28,57x44,45x10,52 PU | 28,57 | 44,45 | 10,52 |
| ATE 35x45x7 PU | 35,00 | 45,00 | 7,00 |
| ATE 38x45x7 PU | 38,00 | 45,00 | 7,00 |
| ATE 37x45x8 PU | 37,00 | 45,00 | 8,00 |
| ATE 35x45x9 PU | 35,00 | 45,00 | 9,00 |
| ATE 38x45x9 PU | 38,00 | 45,00 | 9,00 |
| ATE 30x45x11 PU | 30,00 | 45,00 | 11,00 |
| ATE 28,5x45x13 PU | 28,50 | 45,00 | 13,00 |
| ATE 30x45x13 PU | 30,00 | 45,00 | 13,00 |
| ATE 31,75x47,62x8,93 PU | 31,75 | 47,62 | 8,93 |
| ATE 35,23x49,21x10,52 PU | 35,23 | 49,21 | 10,52 |
| ATE 42x50x4 PU | 42,00 | 50,00 | 4,00 |
| ATE 40x50x5,5 PU | 40,00 | 50,00 | 5,50 |
| ATE 40x50x6 PU | 40,00 | 50,00 | 6,00 |
| ATE 42x50x6 PU | 42,00 | 50,00 | 6,00 |
| ATE 38x50x7 PU | 38,00 | 50,00 | 7,00 |
| ATE 40x50x7 PU | 40,00 | 50,00 | 7,00 |
| ATE 40x50x8 PU | 40,00 | 50,00 | 8,00 |
| ATE 42x50x8 PU | 42,00 | 50,00 | 8,00 |
| ATE 42x50x9 PU | 42,00 | 50,00 | 9,00 |
| ATE 35x50x9,5 PU | 35,00 | 50,00 | 9,50 |
| ATE 32x50x11 PU | 32,00 | 50,00 | 11,00 |
| ATE 35x50x11 PU | 35,00 | 50,00 | 11,00 |
| ATE 40x50x11 PU | 40,00 | 50,00 | 11,00 |
| ATE 42x50x11 PU | 42,00 | 50,00 | 11,00 |
| ATE 30x50x13 PU | 30,00 | 50,00 | 13,00 |
| ATE 35x50x13 PU | 35,00 | 50,00 | 13,00 |
| ATE 41,27x50,8x5,26 PU | 41,27 | 50,80 | 5,26 |
| ATE 40,8x50,8x8 PU | 40,80 | 50,80 | 8,00 |
| ATE 41,27x50,8x8,14 PU | 41,27 | 50,80 | 8,14 |
| ATE 42x52x6 PU | 42,00 | 52,00 | 6,00 |
| ATE 42x52x6,3 PU | 42,00 | 52,00 | 6,30 |
| ATE 38,1x53,97x10,52 PU | 38,10 | 53,97 | 10,52 |
| ATE 41,27x53,97x10,52 PU | 41,27 | 53,97 | 10,52 |
| ATE 45x55x7 PU | 45,00 | 55,00 | 7,00 |
| ATE 45x55x8 PU | 45,00 | 55,00 | 8,00 |
| ATE 45x55x8,5 PU | 45,00 | 55,00 | 8,50 |
| ATE 47x55x9 PU | 47,00 | 55,00 | 9,00 |
| ATE 40x55x11 PU | 40,00 | 55,00 | 11,00 |
| ATE 45x55x11 PU | 45,00 | 55,00 | 11,00 |
| ATE 46x56x8 PU | 46,00 | 56,00 | 8,00 |
| ATE 44,45x57,15x7,35 PU | 44,45 | 57,15 | 7,35 |
| ATE 41,27x57,15x10,52 PU | 41,27 | 57,15 | 10,52 |
| ATE 50x60x5,5 PU | 50,00 | 60,00 | 5,50 |
| ATE 50x60x7 PU | 50,00 | 60,00 | 7,00 |
| ATE 50x60x8 PU | 50,00 | 60,00 | 8,00 |
| ATE 50x60x8,3 PU | 50,00 | 60,00 | 8,30 |
| ATE 52x60x9 PU | 52,00 | 60,00 | 9,00 |
| ATE 45x60x11 PU | 45,00 | 60,00 | 11,00 |
| ATE 50x60x11 PU | 50,00 | 60,00 | 11,00 |
| ATE 40x60x13 PU | 40,00 | 60,00 | 13,00 |
| ATE 44x60x13 PU | 44,00 | 60,00 | 13,00 |
| ATE 45x60x13 PU | 45,00 | 60,00 | 13,00 |
| ATE 40x60x14,5 PU | 40,00 | 60,00 | 14,50 |
| ATE 47,62x60,32x7,35 PU | 47,62 | 60,32 | 7,35 |
| ATE 52x62x8 PU | 52,00 | 62,00 | 8,00 |
| ATE 53x63x4,75 PU | 53,00 | 63,00 | 4,75 |
| ATE 55x63x6,3 PU | 55,00 | 63,00 | 6,30 |
| ATE 53x63x7 PU | 53,00 | 63,00 | 7,00 |
| ATE 48x63x7,5 PU | 48,00 | 63,00 | 7,50 |
| ATE 53x63x8 PU | 53,00 | 63,00 | 8,00 |
| ATE 50x63x10 PU | 50,00 | 63,00 | 10,00 |
| ATE 45x63x11 PU | 45,00 | 63,00 | 11,00 |
| ATE 48x63x11 PU | 48,00 | 63,00 | 11,00 |
| ATE 43x63x13 PU | 43,00 | 63,00 | 13,00 |
| ATE 45x63x13 PU | 45,00 | 63,00 | 13,00 |
| ATE 48x63x13 PU | 48,00 | 63,00 | 13,00 |
| ATE 53x63x13 PU | 53,00 | 63,00 | 13,00 |
| ATE 48x63x13,2 PU | 48,00 | 63,00 | 13,20 |
| ATE 53,97x63,5x7,35 PU | 53,97 | 63,50 | 7,35 |
| ATE 45,7x63,5x9,85 PU | 45,70 | 63,50 | 9,85 |
| ATE 47,62x63,5x10,52 PU | 47,62 | 63,50 | 10,52 |
| ATE 47,63x63,5x13,7 PU | 47,63 | 63,50 | 13,70 |
| ATE 55x65x7 PU | 55,00 | 65,00 | 7,00 |
| ATE 55x65x8 PU | 55,00 | 65,00 | 8,00 |
| ATE 57x65x8 PU | 57,00 | 65,00 | 8,00 |
| ATE 57x65x9 PU | 57,00 | 65,00 | 9,00 |
| ATE 50x65x11 PU | 50,00 | 65,00 | 11,00 |
| ATE 55x65x11 PU | 55,00 | 65,00 | 11,00 |
| ATE 50x65x12,5 PU | 50,00 | 65,00 | 12,50 |
| ATE 45x65x13 PU | 45,00 | 65,00 | 13,00 |
| ATE 50x65x13 PU | 50,00 | 65,00 | 13,00 |
| ATE 45x65x14,5 PU | 45,00 | 65,00 | 14,50 |
| ATE 55x65x14,5 PU | 55,00 | 65,00 | 14,50 |
| ATE 50,8x66,67x9,85 PU | 50,80 | 66,67 | 9,85 |
| ATE 48x68x11 PU | 48,00 | 68,00 | 11,00 |
| ATE 53,97x69,85x8,93 PU | 53,97 | 69,85 | 8,93 |
| ATE 50,8x69,85x13,7 PU | 50,80 | 69,85 | 13,70 |
| ATE 62x70x6 PU | 62,00 | 70,00 | 6,00 |
| ATE 60x70x7 PU | 60,00 | 70,00 | 7,00 |
| ATE 60x70x8 PU | 60,00 | 70,00 | 8,00 |
| ATE 62x70x8,5 PU | 62,00 | 70,00 | 8,50 |
| ATE 62x70x9 PU | 62,00 | 70,00 | 9,00 |
| ATE 55x70x10,5 PU | 55,00 | 70,00 | 10,50 |
| ATE 60x70x11 PU | 60,00 | 70,00 | 11,00 |
| ATE 40x70x12 PU | 40,00 | 70,00 | 12,00 |
| ATE 50x70x13 PU | 50,00 | 70,00 | 13,00 |
| ATE 55x70x13 PU | 55,00 | 70,00 | 13,00 |
