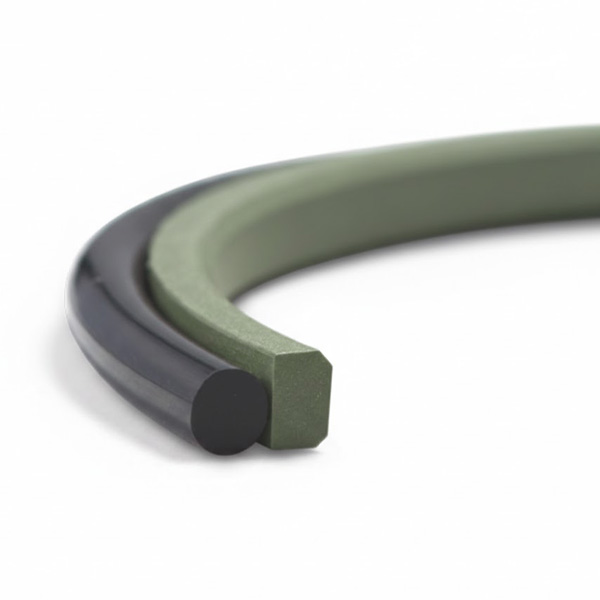

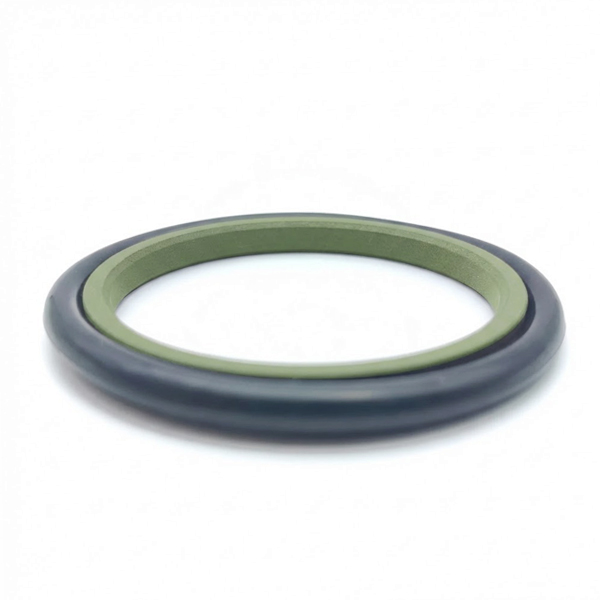

ITS Guarnizione doppio effetto per stelo
ITS Guarnizione doppio effetto per stelo

ITSGuarnizione doppio effetto per stelo

Guarnizione di tenuta per stelo a doppio effetto energizzata da un O-ring per impieghi dinamici. Le sue doti principali sono il basso attrito, l'assenza di Stick-slip e la elevata resistenza all'usura. Ridotto ingombro. Fornibile nelle diverse accoppiate di mescole-compounds a seconda delle condizioni di impiego.

Caratteristiche

  • Temperatura: da -50 a 210 °C
  • Pressione massima: 600 bar
  • Velocità massima: 15 m/s

Utilizzo

alternativo rotatorio elicoidale statico

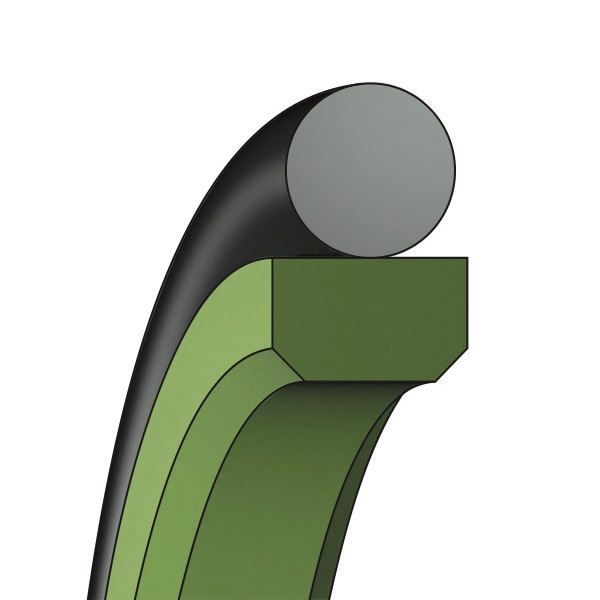

Disegno tecnico ITS Guarnizione doppio effetto per stelo

Dettagli tecnici (PDF) | Guida per l'installazione (PDF) | Materiali (PDF)

Questo prodotto è intercambiabile con:
RG - RT - I/GR A - GIR D.E - NCS - 1821 - ON - S30 - XAB - S-55041 - S-55043 - S-55045 - S09-D - 01 - LGC - 01A00 - 01A01 - 01A02 - 01A03 - 01A04 - 01A05 - 01A06 - 01A07 - SPOR 30 - 01B01 - 01B02 - 01B03 - 01B04 - 01B05 - 01B106 - 01B07 - IGR/A

Descrizione Ø d Ø D L
ITS/L 8 B40 BN 8,00 12,90 2,20
ITS/L 8 B40 VT 8,00 12,90 2,20
ITS 8 B40 BN 8,00 15,30 3,20
ITS 8 B40 VT 8,00 15,30 3,20
ITS/L 10 B40 BN 10,00 14,90 2,20
ITS/L 10 B40 VT 10,00 14,90 2,20
ITS 10 B40 BN 10,00 17,30 3,20
ITS 10 B40 VT 10,00 17,30 3,20
ITS/L 12 B40 BN 12,00 16,90 2,20
ITS/L 12 B40 VT 12,00 16,90 2,20
ITS 12 B40 BN 12,00 19,30 3,20
ITS 12 B40 VT 12,00 19,30 3,20
ITS/L 14 B40 BN 14,00 18,90 2,20
ITS/L 14 B40 VT 14,00 18,90 2,20
ITS 14 B40 BN 14,00 21,30 3,20
ITS 14 B40 VT 14,00 21,30 3,20
ITS/L 15 B40 BN 15,00 19,90 2,20
ITS/L 15 B40 VT 15,00 19,90 2,20
ITS 15 B40 BN 15,00 22,30 3,20
ITS 15 B40 VT 15,00 22,30 3,20
ITS/L 16 B40 BN 16,00 20,90 2,20
ITS/L 16 B40 VT 16,00 20,90 2,20
ITS 16 B40 BN 16,00 23,30 3,20
ITS 16 B40 VT 16,00 23,30 3,20
ITS/L 18 B40 BN 18,00 22,90 2,20
ITS/L 18 B40 VT 18,00 22,90 2,20
ITS/L 19 B40 BN 19,00 26,30 3,20
ITS/L 19 B40 VT 19,00 26,30 3,20
ITS/L 20 B40 BN 20,00 27,30 3,20
ITS/L 20 B40 VT 20,00 27,30 3,20
ITS 20 B40 BN 20,00 30,70 4,20
ITS 20 B40 VT 20,00 30,70 4,20
ITS/L 22 B40 BN 22,00 29,30 3,20
ITS/L 22 B40 VT 22,00 29,30 3,20
ITS 22 B40 BN 22,00 32,70 4,20
ITS 22 B40 VT 22,00 32,70 4,20
ITS 24 B40 BN 24,00 34,70 4,20
ITS 24 B40 VT 24,00 34,70 4,20
ITS/L 25 B40 BN 25,00 32,30 3,20
ITS/L 25 B40 VT 25,00 32,30 3,20
ITS 25 B40 BN 25,00 35,70 4,20
ITS 25 B40 VT 25,00 35,70 4,20
ITS/L 28 B40 BN 28,00 35,30 3,20
ITS/L 28 B40 VT 28,00 35,30 3,20
ITS 28 B40 BN 28,00 38,70 4,20
ITS 28 B40 VT 28,00 38,70 4,20
ITS 29 B40 BN 29,00 39,70 4,20
ITS 29 B40 VT 29,00 39,70 4,20
ITS/L 30 B40 BN 30,00 37,30 3,20
ITS/L 30 B40 VT 30,00 37,30 3,20
ITS 30 B40 BN 30,00 40,70 4,20
ITS 30 B40 VT 30,00 40,70 4,20
ITS/P 30 B40 BN 30,00 45,10 6,30
ITS/P 30 B40 VT 30,00 45,10 6,30
ITS/L 32 B40 BN 32,00 39,30 3,20
ITS/L 32 B40 VT 32,00 39,30 3,20
ITS 32 B40 BN 32,00 42,70 4,20
ITS 32 B40 VT 32,00 42,70 4,20
ITS 33 B40 BN 33,00 43,70 4,20
ITS 33 B40 VT 33,00 43,70 4,20
ITS/L 35 B40 BN 35,00 42,30 3,20
ITS/L 35 B40 VT 35,00 42,30 3,20
ITS 35 B40 BN 35,00 45,70 4,20
ITS 35 B40 VT 35,00 45,70 4,20
ITS/L 36 B40 BN 36,00 43,30 3,20
ITS/L 36 B40 VT 36,00 43,30 3,20
ITS 36 B40 BN 36,00 46,70 4,20
ITS 36 B40 VT 36,00 46,70 4,20
ITS/L 38 B40 BN 38,00 48,70 4,20
ITS/L 38 B40 VT 38,00 48,70 4,20
ITS 38 B40 BN 38,00 53,10 6,30
ITS 38 B40 VT 38,00 53,10 6,30
ITS/L 40 B40 BN 40,00 50,70 4,20
ITS/L 40 B40 VT 40,00 50,70 4,20
ITS 40 B40 BN 40,00 55,10 6,30
ITS 40 B40 VT 40,00 55,10 6,30
ITS 42 B40 BN 42,00 57,10 6,30
ITS 42 B40 VT 42,00 57,10 6,30
ITS/L 45 B40 BN 45,00 55,70 4,20
ITS/L 45 B40 VT 45,00 55,70 4,20
ITS 45 B40 BN 45,00 60,10 6,30
ITS 45 B40 VT 45,00 60,10 6,30
ITS/L 48 B40 BN 48,00 58,70 4,20
ITS/L 48 B40 VT 48,00 58,70 4,20
ITS 48 B40 BN 48,00 63,10 6,30
ITS 48 B40 VT 48,00 63,10 6,30
ITS/L 50 B40 BN 50,00 60,70 4,20
ITS/L 50 B40 VT 50,00 60,70 4,20
ITS 50 B40 BN 50,00 65,10 6,30
ITS 50 B40 VT 50,00 65,10 6,30
ITS 52 B40 BN 52,00 67,10 6,30
ITS 52 B40 VT 52,00 67,10 6,30
ITS/L 53 B40 BN 53,00 63,70 4,20
ITS/L 53 B40 VT 53,00 63,70 4,20
ITS 53 B40 BN 53,00 68,10 6,30
ITS 53 B40 VT 53,00 68,10 6,30
ITS/L 55 B40 BN 55,00 65,70 4,20
ITS/L 55 B40 VT 55,00 65,70 4,20
ITS 55 B40 BN 55,00 70,10 6,30
ITS 55 B40 VT 55,00 70,10 6,30
ITS/L 56 B40 BN 56,00 66,70 4,20
ITS/L 56 B40 VT 56,00 66,70 4,20
ITS 56 B40 BN 56,00 71,10 6,30
ITS 56 B40 VT 56,00 71,10 6,30
ITS 58 B40 BN 58,00 73,10 6,30
ITS 58 B40 VT 58,00 73,10 6,30
ITS/L 60 B40 BN 60,00 70,70 4,20
ITS/L 60 B40 VT 60,00 70,70 4,20
ITS 60 B40 BN 60,00 75,10 6,30
ITS 60 B40 VT 60,00 75,10 6,30
ITS/P 60 B40 BN 60,00 80,50 8,10
ITS/P 60 B40 VT 60,00 80,50 8,10
ITS/L 63 B40 BN 63,00 73,70 4,20
ITS/L 63 B40 VT 63,00 73,70 4,20
ITS 63 B40 BN 63,00 78,10 6,30
ITS 63 B40 VT 63,00 78,10 6,30
ITS/P 63 B40 BN 63,00 83,50 8,10
ITS/P 63 B40 VT 63,00 83,50 8,10
ITS/L 65 B40 BN 65,00 75,70 4,20
ITS/L 65 B40 VT 65,00 75,70 4,20
ITS 65 B40 BN 65,00 80,10 6,30
ITS 65 B40 VT 65,00 80,10 6,30
ITS 66 B40 BN 66,00 81,10 6,30
ITS 66 B40 VT 66,00 81,10 6,30
ITS/L 70 B40 BN 70,00 80,70 4,20
ITS/L 70 B40 VT 70,00 80,70 4,20
ITS 70 B40 BN 70,00 85,10 6,30
ITS 70 B40 VT 70,00 85,10 6,30
ITS/L 75 B40 BN 75,00 85,70 4,20
ITS/L 75 B40 VT 75,00 85,70 4,20
ITS 75 B40 BN 75,00 90,10 6,30
ITS 75 B40 VT 75,00 90,10 6,30
ITS/L 80 B40 BN 80,00 90,70 4,20
ITS/L 80 B40 VT 80,00 90,70 4,20
ITS 80 B40 BN 80,00 95,10 6,30
ITS 80 B40 VT 80,00 95,10 6,30
ITS/P 80 B40 BN 80,00 100,50 8,10
ITS/P 80 B40 VT 80,00 100,50 8,10
ITS 82 B40 BN 82,00 97,10 6,30
ITS 82 B40 VT 82,00 97,10 6,30
ITS/L 85 B40 BN 85,00 95,70 4,20
ITS/L 85 B40 VT 85,00 95,70 4,20
ITS 85 B40 BN 85,00 100,10 6,30
ITS 85 B40 VT 85,00 100,10 6,30
ITS/L 90 B40 BN 90,00 100,70 4,20
ITS/L 90 B40 VT 90,00 100,70 4,20
ITS 90 B40 BN 90,00 105,10 6,30
ITS 90 B40 VT 90,00 105,10 6,30
ITS/L 95 B40 BN 95,00 105,70 4,20
ITS/L 95 B40 VT 95,00 105,70 4,20
ITS 95 B40 BN 95,00 110,10 6,30
ITS 95 B40 VT 95,00 110,10 6,30
ITS/P 95 B40 BN 95,00 115,50 8,10
ITS/P 95 B40 VT 95,00 115,50 8,10
ITS/L 96 B40 BN 96,00 106,70 4,20
ITS/L 96 B40 VT 96,00 106,70 4,20
ITS/L 100 B40 BN 100,00 110,70 4,20
ITS/L 100 B40 VT 100,00 110,70 4,20
ITS 100 B40 BN 100,00 115,10 6,30
ITS 100 B40 VT 100,00 115,10 6,30
ITS/L 105 B40 BN 105,00 115,70 4,20
ITS/L 105 B40 VT 105,00 115,70 4,20
ITS 105 B40 BN 105,00 120,10 6,30
ITS 105 B40 VT 105,00 120,10 6,30
ITS/L 110 B40 BN 110,00 120,70 4,20
ITS/L 110 B40 VT 110,00 120,70 4,20
ITS 110 B40 BN 110,00 125,10 6,30
ITS 110 B40 VT 110,00 125,10 6,30
ITS/P 110 B40 BN 110,00 130,50 8,10
ITS/P 110 B40 VT 110,00 130,50 8,10
ITS/L 115 B40 BN 115,00 125,70 4,20
ITS/L 115 B40 VT 115,00 125,70 4,20
ITS 115 B40 BN 115,00 130,10 6,30
ITS 115 B40 VT 115,00 130,10 6,30
ITS/L 120 B40 BN 120,00 130,70 4,20
ITS/L 120 B40 VT 120,00 130,70 4,20
ITS 120 B40 BN 120,00 135,10 6,30
ITS 120 B40 VT 120,00 135,10 6,30
ITS/L 125 B40 BN 125,00 135,70 4,20
ITS/L 125 B40 VT 125,00 135,70 4,20
ITS 125 B40 BN 125,00 140,10 6,30
ITS 125 B40 VT 125,00 140,10 6,30
ITS/P 125 B40 BN 125,00 145,50 8,10
ITS/P 125 B40 VT 125,00 145,50 8,10
ITS/L 130 B40 BN 130,00 140,70 4,20
ITS/L 130 B40 VT 130,00 140,70 4,20
ITS 130 B40 BN 130,00 145,10 6,30
ITS 130 B40 VT 130,00 145,10 6,30
ITS/P 130 B40 BN 130,00 150,50 8,10
ITS/P 130 B40 VT 130,00 150,50 8,10
ITS 134 B40 BN 134,00 149,10 6,30
ITS/L 135 B40 BN 135,00 145,70 4,20
ITS/L 135 B40 VT 135,00 145,70 4,20
ITS 135 B40 BN 135,00 150,10 6,30
ITS 135 B40 VT 135,00 150,10 6,30
ITS/P 135 B40 BN 135,00 155,50 8,10
ITS/P 135 B40 VT 135,00 155,50 8,10
ITS/L 140 B40 BN 140,00 150,70 4,20
ITS/L 140 B40 VT 140,00 150,70 4,20
ITS 140 B40 BN 140,00 155,10 6,30

200 articoli (visualizzati da 1 a 200 di 363 voci)
