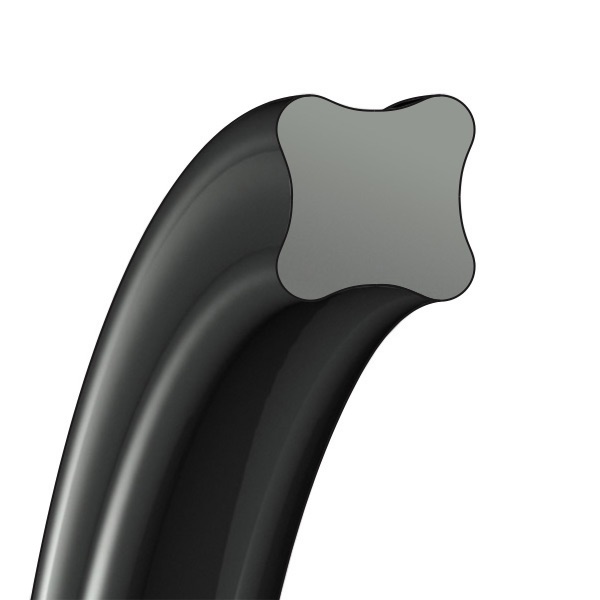

Q-RINGGuarnizione statica

Guarnizione con profilo a quattro lobi, tenuta a doppio effetto, per applicazioni statiche e dinamiche. Garantisce risultati di tenuta superiori rispetto al tipo O-Ring e minore attrito. Materiale standard: nitrile, a richiesta disponibile in materiali diversi.

Caratteristiche

Temperatura: da -200 a 260 °C
Pressione massima: 50 bar
Velocità massima: 2 m/s

Utilizzo

Disegno tecnico
Intercambiabilità

Disegno tecnico Q-RING Guarnizione statica

Dettagli tecnici (PDF) | Materiali (PDF)

Questo prodotto è intercambiabile con:
O-Ring - X ring - Quad-Ring - QRING - JF4

Articoli per pagina:

Descrizione	Rif. OR	Ø d	C
QR 4004 BN	OR 2007 BN	1,78	1,78
QR 4005 BN	OR 2010 BN	2,57	1,78
QR 4006 BN	OR 2012 BN	2,90	1,78
QR 4007 BN	OR 2015 BN	3,68	1,78
QR 4008 BN	OR 2018 BN	4,47	1,78
QR 4009 BN	OR 2021 BN	5,28	1,78
QR 4010 BN	OR 2025 BN	6,07	1,78
QR 4011 BN	OR 2031 BN	7,66	1,78
QR 4012A BN	/	8,20	1,78
QR 4012 BN	OR 2037 BN	9,25	1,78
QR 4013 BN	OR 2043 BN	10,82	1,78
QR 4014 BN	OR 2050 BN	12,42	1,78
QR 4015 BN	OR 2056 BN	14,00	1,78
QR 4016 BN	OR 2062 BN	15,60	1,78
QR 4017 BN	OR 2068 BN	17,17	1,78
QR 4018 BN	OR 2075 BN	18,77	1,78
QR 4019 BN	OR 2081 BN	20,35	1,78
QR 4020 BN	OR 2087 BN	21,95	1,78
QR 4021 BN	OR 2093 BN	23,52	1,78
QR 4022 BN	OR 2100 BN	25,12	1,78
QR 4023 BN	OR 2106 BN	26,70	1,78
QR 4024 BN	OR 2112 BN	28,30	1,78
QR 4025 BN	OR 2118 BN	29,87	1,78
QR 4026 BN	OR 2125 BN	31,47	1,78
QR 4027 BN	OR 2131 BN	33,05	1,78
QR 4028 BN	OR 2137 BN	34,65	1,78
QR 4029 BN	OR 2150 BN	37,82	1,78
QR 4030 BN	OR 2162 BN	41,00	1,78
QR 4031 BN	OR 2175 BN	44,17	1,78
QR 4032 BN	OR 2187 BN	47,37	1,78
QR 4033 BN	OR 2200 BN	50,52	1,78
QR 4034 BN	OR 2212 BN	53,70	1,78
QR 4035 BN	OR 2225 BN	56,87	1,78
QR 4036 BN	OR 2237 BN	60,05	1,78
QR 4037 BN	OR 2250 BN	63,22	1,78
QR 4038 BN	OR 2262 BN	66,40	1,78
QR 4039 BN	OR 2275 BN	69,57	1,78
QR 4040 BN	OR 2287 BN	72,75	1,78
QR 4041 BN	OR 2300 BN	75,92	1,78
QR 4042 BN	OR 2325 BN	82,27	1,78
QR 4043 BN	OR 2350 BN	88,62	1,78
QR 4044 BN	OR 2375 BN	94,97	1,78
QR 4045 BN	OR 2400 BN	101,34	1,78
QR 4046 BN	OR 2425 BN	107,67	1,78
QR 4047 BN	OR 2450 BN	114,02	1,78
QR 4048 BN	OR 2475 BN	120,32	1,78
QR 4049 BN	OR 2500 BN	126,72	1,78
QR 4050 BN	OR 2525 BN	133,07	1,78
QR 4102 BN	/	1,24	2,62
QR 4103 BN	OR 3010 BN	2,06	2,62
QR 4104 BN	OR 3012 BN	2,85	2,62
QR 4105 BN	OR 3015 BN	3,63	2,62
QR 4106 BN	OR 3018 BN	4,42	2,62
QR 4107 BN	OR 3021 BN	5,23	2,62
QR 4108 BN	OR 3024 BN	6,02	2,62
QR 4109 BN	OR 3030 BN	7,59	2,62
QR 4110 BN	OR 3037 BN	9,19	2,62
QR 4111 BN	OR 3043 BN	10,77	2,62
QR 9A BN	/	11,70	2,62
QR 4112 BN	OR 3050 BN	12,37	2,62
QR 4113 BN	OR 3056 BN	13,94	2,62
QR 4113A BN	/	14,70	2,62
QR 4114 BN	OR 3062 BN	15,54	2,62
QR 4114A BN	/	16,20	2,62
QR 4115 BN	OR 3068 BN	17,12	2,62
QR 4115A BN	QR 13A BN	17,75	2,62
QR 4116 BN	OR 3075 BN	18,72	2,62
QR 4117 BN	OR 3081 BN	20,24	2,62
QR 4118 BN	OR 3087 BN	21,89	2,62
QR 4119 BN	OR 3093 BN	23,47	2,62
QR 4120 BN	OR 3100 BN	25,07	2,62
QR 4121 BN	OR 3106 BN	26,64	2,62
QR 4122 BN	OR 3112 BN	28,24	2,62
QR 4123 BN	OR 3118 BN	29,82	2,62
QR 4124 BN	OR 3125 BN	31,42	2,62
QR 4125 BN	OR 3131 BN	32,99	2,62
QR 4126 BN	OR 3137 BN	34,60	2,62
QR 4127 BN	OR 3143 BN	36,14	2,62
QR 4128 BN	OR 3150 BN	37,77	2,62
QR 4129 BN	OR 3156 BN	39,34	2,62
QR 4130 BN	OR 3162 BN	40,95	2,62
QR 4131 BN	OR 3168 BN	42,52	2,62
QR 4132 BN	OR 3175 BN	44,12	2,62
QR 4133 BN	OR 3181 BN	45,69	2,62
QR 4134 BN	OR 3187 BN	47,30	2,62
QR 4135 BN	OR 3193 BN	48,90	2,62
QR 4136 BN	OR 3200 BN	50,47	2,62
QR 4137 BN	OR 3206 BN	52,07	2,62
QR 4138 BN	OR 3212 BN	53,64	2,62
QR 4139 BN	OR 3218 BN	55,25	2,62
QR 4140 BN	OR 3225 BN	56,82	2,62
QR 4141 BN	OR 3231 BN	58,42	2,62
QR 4142 BN	OR 3237 BN	60,00	2,62
QR 4143 BN	OR 3243 BN	61,60	2,62
QR 4144 BN	OR 3250 BN	63,17	2,62
QR 4145 BN	OR 3256 BN	64,77	2,62
QR 4146 BN	OR 3262 BN	66,35	2,62
QR 4147 BN	OR 3268 BN	67,95	2,62
QR 4148 BN	OR 3275 BN	69,52	2,62
QR 4149 BN	OR 3281 BN	71,12	2,62
QR 4150 BN	OR 3287 BN	72,69	2,62
QR 4151 BN	OR 3300 BN	75,87	2,62
QR 4152 BN	OR 3325 BN	82,22	2,62
QR 4153 BN	OR 3350 BN	88,57	2,62
QR 4154 BN	OR 3375 BN	94,92	2,62
QR 4155 BN	OR 3400 BN	101,27	2,62
QR 4156 BN	OR 3425 BN	107,62	2,62
QR 4157 BN	OR 3450 BN	113,97	2,62
QR 4158 BN	OR 3475 BN	120,33	2,62
QR 4159 BN	OR 3500 BN	126,67	2,62
QR 4160 BN	OR 3525 BN	133,02	2,62
QR 4161 BN	OR 3550 BN	139,38	2,62
QR 4162 BN	OR 3575 BN	145,72	2,62
QR 4163 BN	OR 3600 BN	152,07	2,62
QR 4164 BN	OR 3625 BN	158,42	2,62
QR 4165 BN	OR 3650 BN	164,78	2,62
QR 4166 BN	OR 3675 BN	171,13	2,62
QR 4167 BN	OR 3700 BN	177,48	2,62
QR 4168 BN	OR 3725 BN	183,83	2,62
QR 4169 BN	OR 3750 BN	190,18	2,62
QR 4170 BN	OR 3775 BN	196,53	2,62
QR 4171 BN	OR 3800 BN	202,88	2,62
QR 4172 BN	OR 3825 BN	209,23	2,62
QR 4173 BN	OR 3850 BN	215,58	2,62
QR 4174 BN	OR 3875 BN	221,93	2,62
QR 4175 BN	OR 3900 BN	228,28	2,62
QR 4176 BN	OR 3925 BN	234,63	2,62
QR 4177 BN	OR 3950 BN	240,98	2,62
QR 4178 BN	OR 3975 BN	247,33	2,62
QR 4201 BN	OR 4021 BN	4,34	3,53
QR 4202 BN	OR 4024 BN	5,94	3,53
QR 4203 BN	OR 4028 BN	7,52	3,53
QR 4204 BN	OR 4036 BN	9,12	3,53
QR 4205 BN	OR 4042 BN	10,69	3,53
QR 4206 BN	OR 4050 BN	12,29	3,53
QR 4207 BN	OR 4055 BN	13,87	3,53
QR 4208 BN	OR 4061 BN	15,47	3,53
QR 4209 BN	OR 4067 BN	17,04	3,53
QR 4210A BN	/	18,20	3,53
QR 4210 BN	OR 4075 BN	18,64	3,53
QR 4211 BN	OR 4081 BN	20,22	3,53
QR 4212 BN	OR 4087 BN	21,82	3,53
QR 4213 BN	OR 4093 BN	23,40	3,53
QR 4214 BN	OR 4100 BN	24,99	3,53
QR 4215 BN	OR 4106 BN	26,57	3,53
QR 4216 BN	OR 4112 BN	28,17	3,53
QR 4217 BN	OR 4118 BN	29,74	3,53
QR 4218 BN	OR 4125 BN	31,34	3,53
QR 4219 BN	OR 4131 BN	32,93	3,53
QR 4220 BN	OR 4137 BN	34,52	3,53
QR 4221 BN	OR 4143 BN	36,09	3,53
QR 4222 BN	OR 4150 BN	37,69	3,53
QR 4223 BN	OR 4162 BN	40,87	3,53
QR 4224 BN	OR 4175 BN	44,04	3,53
QR 4225 BN	OR 4187 BN	47,22	3,53
QR 4226 BN	OR 4200 BN	50,39	3,53
QR 4227 BN	OR 4212 BN	53,57	3,53
QR 4228 BN	OR 4225 BN	56,74	3,53
QR 4229 BN	OR 4237 BN	59,92	3,53
QR 4230 BN	OR 4250 BN	63,09	3,53
QR 4231 BN	OR 4262 BN	66,27	3,53
QR 4232 BN	OR 4275 BN	69,44	3,53
QR 4233 BN	OR 4287 BN	72,62	3,53
QR 4234 BN	OR 4300 BN	75,79	3,53
QR 4235 BN	OR 4312 BN	78,97	3,53
QR 4236 BN	OR 4325 BN	82,14	3,53
QR 4237 BN	OR 4337 BN	85,32	3,53
QR 4238 BN	OR 4350 BN	88,49	3,53
QR 4239 BN	OR 4362 BN	91,67	3,53
QR 4240 BN	OR 4375 BN	94,84	3,53
QR 4241 BN	OR 4387 BN	98,02	3,53
QR 4242 BN	OR 4400 BN	101,19	3,53
QR 4243 BN	OR 4412 BN	104,37	3,53
QR 4244 BN	OR 4425 BN	107,54	3,53
QR 4245 BN	OR 4437 BN	110,72	3,53
QR 4246 BN	OR 4450 BN	113,89	3,53
QR 4247 BN	OR 4462 BN	117,07	3,53
QR 4248 BN	OR 4475 BN	120,24	3,53
QR 4249 BN	OR 4487 BN	123,42	3,53
QR 4250 BN	OR 4500 BN	126,59	3,53
QR 4251 BN	OR 4512 BN	129,77	3,53
QR 4252 BN	OR 4525 BN	132,94	3,53
QR 4253 BN	OR 4537 BN	136,12	3,53
QR 4254 BN	OR 4550 BN	139,29	3,53
QR 4255 BN	OR 4562 BN	142,47	3,53
QR 4256 BN	OR 4575 BN	145,64	3,53
QR 4257 BN	OR 4587 BN	148,82	3,53
QR 4258 BN	OR 4600 BN	151,99	3,53
QR 4259 BN	OR 4625 BN	158,34	3,53
QR 4260 BN	OR 4650 BN	164,69	3,53
QR 4261 BN	OR 4675 BN	171,05	3,53
QR 4262 BN	OR 4700 BN	177,39	3,53
QR 4263 BN	OR 4725 BN	183,74	3,53
QR 4264 BN	OR 4750 BN	190,09	3,53
QR 4265 BN	OR 4775 BN	196,44	3,53
QR 4266 BN	OR 4800 BN	202,79	3,53
QR 4267 BN	OR 4825 BN	209,14	3,53
QR 4268 BN	OR 4850 BN	215,49	3,53
QR 4269 BN	OR 4875 BN	221,85	3,53
QR 4270 BN	OR 4900 BN	228,19	3,53

200 articoli (visualizzati da 1 a 200 di 362 voci)
